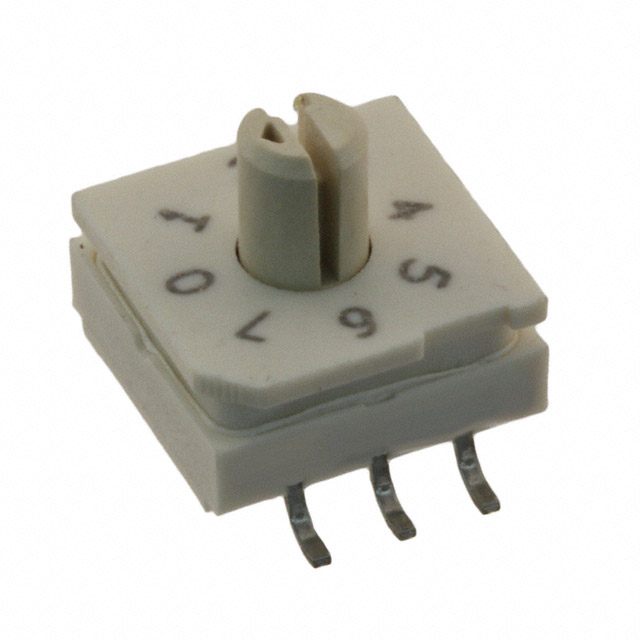

94HCB08WT

Active

Grayhill Inc.

SWITCH ROTARY DIP OCTAL 0.1A 50V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY DIP OCTAL 0.1A 50V

Technical Specifications

Parameters and characteristics for this part

SWITCH ROTARY DIP OCTAL 0.1A 50V

Part	Number of Positions	Current Rating (Amps)	Circuit	Height Above Board	Height Above Board	Actuator Level	Mounting Type	Contact Finish	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Features	Termination Style	Length	Length	Pitch [x]	Pitch	Pitch [x]	Washable	Body Material	Voltage Rating	Actuator Type	Contact Material
Grayhill Inc. 94HCB08WT	8	100 mA	Octal	0.225 in	5.72 mm	Raised	Surface Mount	Gold	10000 Steps	85 °C	-40 °C	Sealed	Gull Wing	0.39 "	9.91 mm	0.1 in	Full	2.54 mm		Plastic	50 V	Rotary with Shaft	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch Octal 8 Position Surface Mount Rotary with Shaft Actuator 100mA 50VDC
