A6X30141143

Active

Siemens

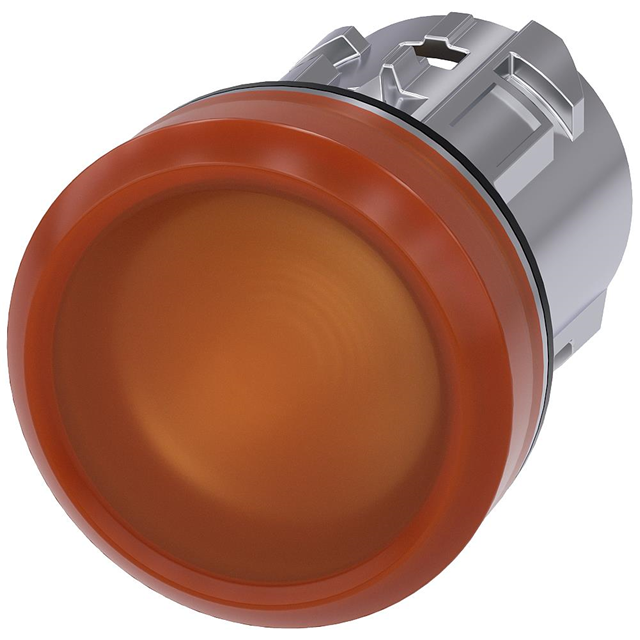

INDICATOR LIGHT. AMBER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A6X30141143

Active

Siemens

INDICATOR LIGHT. AMBER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 40.78
		10	$ 33.38
		100	$ 29.12

Description

General part information

A6X30141 Series

LED Panel Indicator Amber Diffused

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A6X30141143	A6X30141 Series

Ingress Protection	NEMA 1, IP67, NEMA 12, NEMA 2, NEMA 4, IP69K, NEMA 3, IP69, IP66, NEMA 13, NEMA 4X, NEMA 3R	NEMA 1, IP67, NEMA 12, NEMA 2, NEMA 4, IP69K, NEMA 3, IP69, IP66, NEMA 13, NEMA 4X, NEMA 3R, IP20
Lamp Color	Amber	Green, Blue, White, Yellow, Clear, Amber, Red
Lens Color	Amber	Green, Blue, White, Yellow, Colorless, Amber, Red
Lens Size [diameter]	22 mm	22 - 30 mm
Lens Transparency	Diffused	Diffused, Clear
Millicandela Rating	-	280 - 900 mcd
Millicandela Rating	-	710 - 1800 mcd
Panel Cutout Dimensions	0.88 in	0.88 - 1.2 in
Panel Cutout Dimensions	22.3 mm	22.3 - 30.5 mm
Panel Cutout Shape	Round	Round
Ratings	-	AC/DC
Termination Style	-	Screw Terminal, Spring Terminal
Type	LED	LED
Voltage	-	24 V

A6X30141 Series

INDICATOR LIGHT. GREEN

Part	Type	Lens Transparency	Lamp Color	Lens Size [diameter]	Lens Color	Panel Cutout Shape	Ingress Protection	Panel Cutout Dimensions	Panel Cutout Dimensions	Voltage	Millicandela Rating [Min]	Millicandela Rating [Max]	Ratings	Termination Style
Siemens A6X30141153	LED	Diffused	Green	22 mm	Green	Round	IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	0.88 in	22.3 mm
Siemens A6X30141944	LED	Diffused	Blue	22 mm	Blue	Round	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	0.88 in	22.3 mm	24 V	280 mcd	710 mcd	AC/DC	Screw Terminal
Siemens A6X30141164	LED	Diffused	White	22 mm	White	Round	IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	0.88 in	22.3 mm
Siemens A6X30141152	LED	Diffused	Yellow	22 mm	Yellow	Round	IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	0.88 in	22.3 mm
Siemens A6X30141271	LED	Diffused	Blue	30 mm	Blue	Round	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	1.2 in	30.5 mm
Siemens A6X30141268	LED	Diffused	Green	30 mm	Green	Round	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	1.2 in	30.5 mm
Siemens A6X30141162	LED	Diffused	White	29.5 mm	White	Round	IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	0.88 in	22.3 mm
Siemens A6X30141274	LED	Diffused	Blue	30 mm	Blue	Round	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	1.2 in	30.5 mm
Siemens A6X30141156	LED	Diffused	Green	22 mm	Green	Round	IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	0.88 in	22.3 mm
Siemens A6X30141166	LED	Clear	Clear	22 mm	Colorless	Round	IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	0.88 in	22.3 mm
