564RC0GAJ602EJ240J
ActiveVishay Dale
CAP CER 24PF 6KV NP0 RADIAL
564RC0GAJ602EJ240J
ActiveVishay Dale
CAP CER 24PF 6KV NP0 RADIAL
Description
General part information
564RC0GAJ602EJ240J

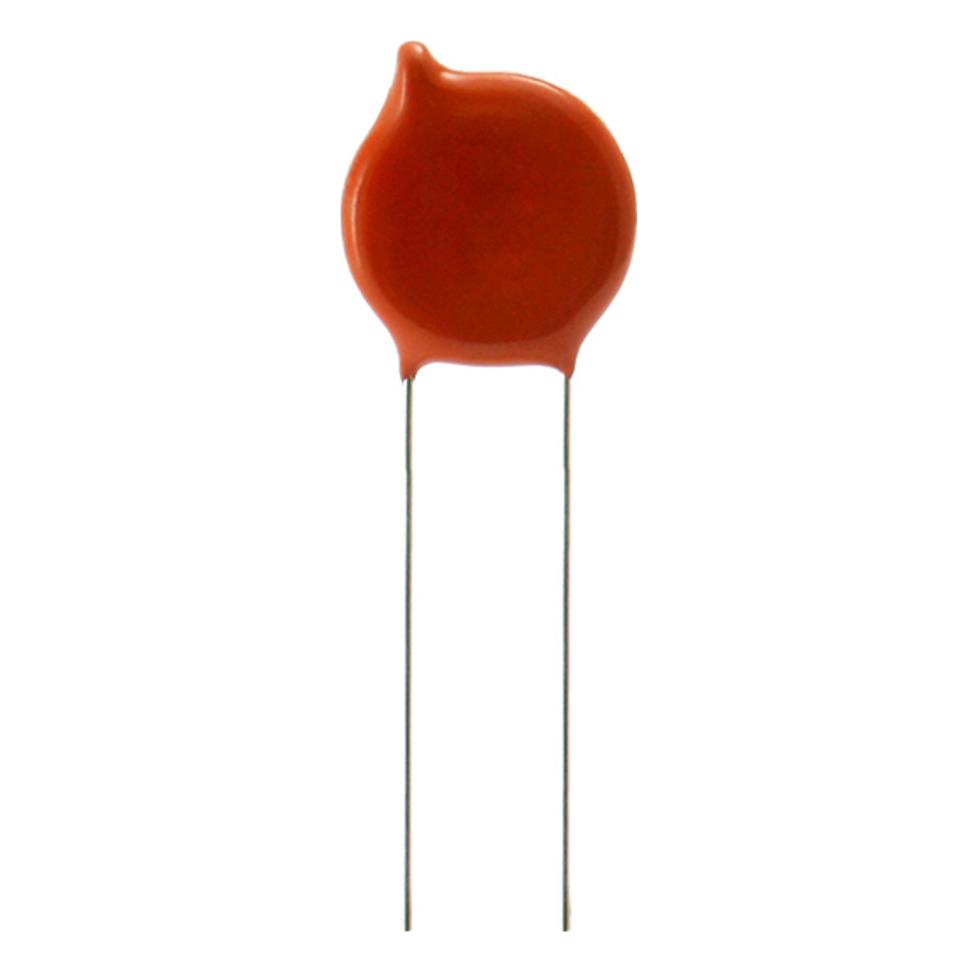

24 pF ±5% 6000V (6kV) Ceramic Capacitor C0G, NP0 Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | 564RC0GAJ602EJ240J |
|---|---|
| Applications | General Purpose |
| Capacitance | 24 pF |
| Features | Low Dissipation Factor |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Disc, Radial |
| Temperature Coefficient | NP0, C0G |
| Tolerance | 5 % |
| Voltage - Rated | 6000 V |
