0800569:PEN
ActivePhoenix Contact

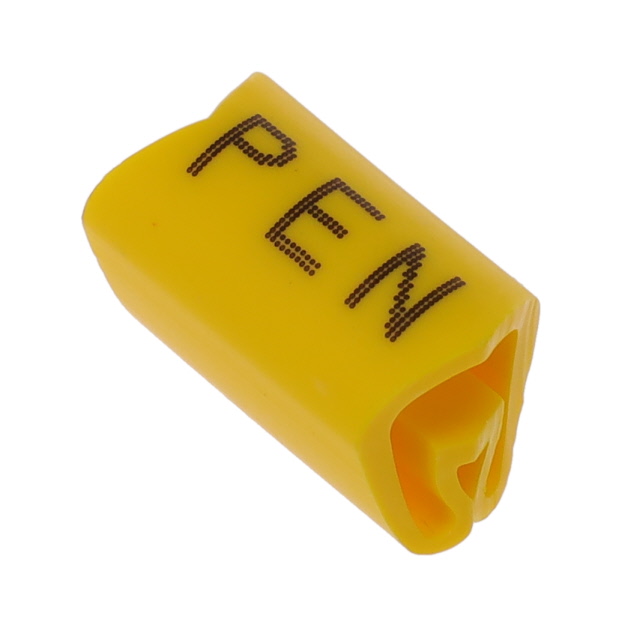

WIRE MARKR SLIP-ON 4.2MM X 6.6MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0800569:PEN
ActivePhoenix Contact
WIRE MARKR SLIP-ON 4.2MM X 6.6MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0800569:PEN | 0800569 Series |
|---|---|---|
| Cable Diameter [Max] [diameter] | 9 mm | 9 mm |
| Cable Diameter [Max] [diameter] | 0.354 in | 0.354 in |
| Cable Diameter [Min] [diameter] | 0.197 in | 0.197 in |
| Cable Diameter [Min] [diameter] | 5 mm | 5 mm |
| Color | Yellow | Yellow |
| Legend | PEN | PEN, L1, PE, Symbols, ERDE, L3, WSTR, L2 |
| Material | Ethylene Vinyl Acetate Copolymer (EVA) | Ethylene Vinyl Acetate Copolymer (EVA), Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -45 °C | -45 °C |
| Size | - | 4.3 mm |
| Size | - | 0.17 in |
| Size [custom] | 0.26 in | 0.26 in |
| Size [custom] | 6.6 mm | 6.6 mm |
| Size [custom] | 4.2 mm | 4.2 mm |
| Size [custom] | 0.17 in | 0.17 in |
| Type | Wire Marker, Slip-On | Wire Marker, Slip-On |
0800569 Series
WIRE MARKR SLIP-ON 4.2MM X 6.6MM
| Part | Material | Cable Diameter [Max] [diameter] | Cable Diameter [Min] [diameter] | Cable Diameter [Max] [diameter] | Cable Diameter [Min] [diameter] | Size [custom] | Size [custom] | Size [custom] | Size [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Type | Legend | Color | Size [y] | Size [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 0800569:PEN | Ethylene Vinyl Acetate Copolymer (EVA) | 9 mm | 0.197 in | 0.354 in | 5 mm | 0.26 in | 6.6 mm | 4.2 mm | 0.17 in | -45 °C | 70 °C | Wire Marker, Slip-On | PEN | Yellow | ||
Phoenix Contact 0800569:L1 | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free | 9 mm | 0.197 in | 0.354 in | 5 mm | -45 °C | 70 °C | Wire Marker, Slip-On | L1 | Yellow | 4.3 mm | 0.17 in | ||||
Phoenix Contact 0800569:PE | Ethylene Vinyl Acetate Copolymer (EVA) | 9 mm | 0.197 in | 0.354 in | 5 mm | 0.26 in | 6.6 mm | 4.2 mm | 0.17 in | -45 °C | 70 °C | Wire Marker, Slip-On | PE | Yellow | ||
Phoenix Contact 0800569:- | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free | 9 mm | 0.197 in | 0.354 in | 5 mm | -45 °C | 70 °C | Wire Marker, Slip-On | Symbols | Yellow | 4.3 mm | 0.17 in | ||||
Phoenix Contact 0800569:ERDE | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free | 9 mm | 0.197 in | 0.354 in | 5 mm | -45 °C | 70 °C | Wire Marker, Slip-On | ERDE | Yellow | ||||||
Phoenix Contact 0800569:+ | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free | 9 mm | 0.197 in | 0.354 in | 5 mm | -45 °C | 70 °C | Wire Marker, Slip-On | Symbols | Yellow | 4.3 mm | 0.17 in | ||||
Phoenix Contact 0800569:L3 | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free | 9 mm | 0.197 in | 0.354 in | 5 mm | -45 °C | 70 °C | Wire Marker, Slip-On | L3 | Yellow | 4.3 mm | 0.17 in | ||||
Phoenix Contact 0800569:WSTR | 9 mm | 0.197 in | 0.354 in | 5 mm | Wire Marker, Slip-On | WSTR | Yellow | 4.3 mm | 0.17 in | |||||||
Phoenix Contact 0800569:L2 | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free | 9 mm | 0.197 in | 0.354 in | 5 mm | -45 °C | 70 °C | Wire Marker, Slip-On | L2 | Yellow | 4.3 mm | 0.17 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 0.05 | |
Description
General part information
0800569 Series
Wire Marker, Slip-On 0.17" W x 0.26" L (4.2mm x 6.6mm) Yellow Ethylene Vinyl Acetate Copolymer (EVA)
