1379675-1
ActiveTE Connectivity AMP Connectors

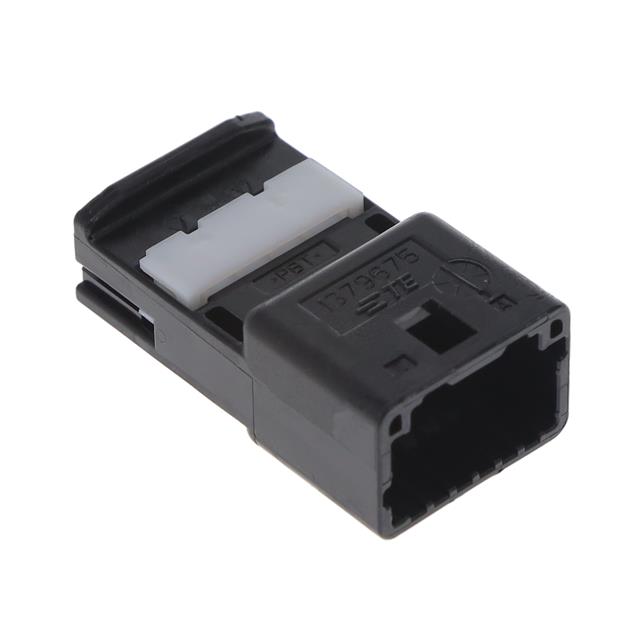

CONN PLUG HSG 12POS 2.20MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1379675-1
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 12POS 2.20MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1379675-1 | 1379675 Series |
|---|---|---|
| Color | Black | Black, Natural, Gray |
| Connector Type | Plug | Plug, Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Tab | Tab |
| Fastening Type | - | Latch Lock, Locking Ramp |
| Features | - | Terminal Position Lock (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 12 | 12 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 0.087 in | 0.087 in |
| Pitch [x] | 2.2 mm | 2.2 mm |
| Row Spacing [x] | 0.118 in | 0.118 in |
| Row Spacing [x] | 3 mm | 3 mm |
1379675 Series
CONN PLUG HSG 12POS 2.20MM
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Contact Type | Connector Type | Insulation Material | Note | Contact Termination | Pitch [x] | Pitch [x] | Number of Positions | Color | Row Spacing [x] | Row Spacing [x] | Mounting Type | Fastening Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1379675-1 | 100 °C | -40 °C | 2 | Tab | Plug | Polybutylene Terephthalate (PBT) | Contacts Not Included | Crimp | 0.087 in | 2.2 mm | 12 | Black | 0.118 in | 3 mm | Free Hanging (In-Line) | ||
TE Connectivity AMP Connectors 1379675-5 | 100 °C | -40 °C | 2 | Tab | Receptacle | Polybutylene Terephthalate (PBT) | Crimp | 0.087 in | 2.2 mm | 12 | Natural | 0.118 in | 3 mm | Free Hanging (In-Line) | Latch Lock | ||
TE Connectivity AMP Connectors 1379675-2 | 100 °C | -40 °C | 2 | Tab | Plug | Polybutylene Terephthalate (PBT) | Crimp | 0.087 in | 2.2 mm | 12 | Gray | 0.118 in | 3 mm | Free Hanging (In-Line) | Locking Ramp | Terminal Position Lock (TPA) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.60 | |
| 10 | $ 1.46 | |||
| 100 | $ 1.30 | |||
| 1200 | $ 1.04 | |||
| 6000 | $ 0.94 | |||
| 10800 | $ 0.89 | |||
Description
General part information
1379675 Series
12 Rectangular Connectors - Housings Plug Black 0.087" (2.20mm)
