UES2603HR2
ActiveHIGH EFFICIENCY RECTIFIER 3-PIN(2+TAB) 30A, 150V TO-3 TRAY
Deep-Dive with AI
Search across all available documentation for this part.
UES2603HR2
ActiveHIGH EFFICIENCY RECTIFIER 3-PIN(2+TAB) 30A, 150V TO-3 TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UES2603HR2 | UES2603-Rectifier Series |
|---|---|---|
| Current - Average Rectified (Io) | 30 A | 30 A |
| Current - Reverse Leakage @ Vr | - | 20 µA |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C | -55 C |

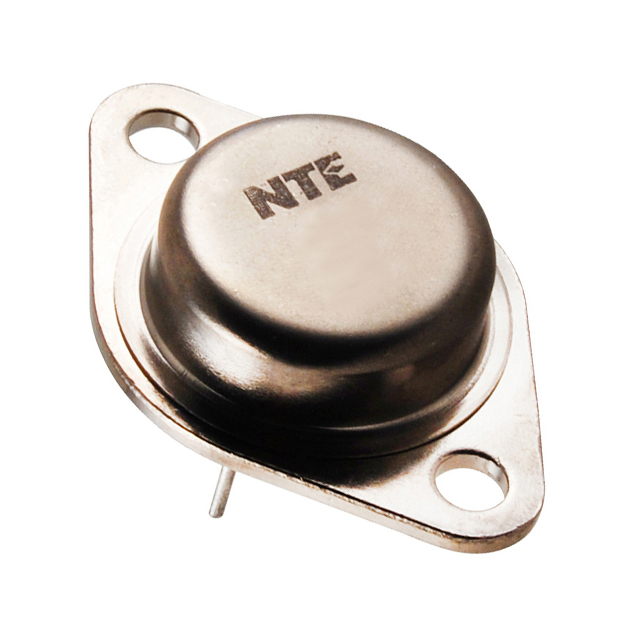

| Package / Case | TO-3, TO-204AA | TO-3, TO-204AA |
| Reverse Recovery Time (trr) | 35 ns | 35 ns |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Technology | Standard | Standard, Reverse Polarity |
| Voltage - Forward (Vf) (Max) @ If | 930 mV | 930 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 79.76 | |
| Microchip Direct | N/A | 1 | $ 85.89 | |
UES2603-Rectifier Series
High Efficiency Rectifier 3-Pin(2+Tab) 30A, 150V TO-3 Tray
| Part | Mounting Type | Speed | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Voltage - Forward (Vf) (Max) @ If | Current - Average Rectified (Io) | Package / Case | Technology | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr |
|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology UES2603HR2 | Through Hole | 200 mA, 500 ns | 175 ░C | -55 C | 930 mV | 30 A | TO-204AA, TO-3 | Standard | 35 ns | |
Microchip Technology UES2603 | Through Hole | 200 mA, 500 ns | 175 ░C | -55 C | 930 mV | 30 A | TO-204AA, TO-3 | Standard | 35 ns | 20 µA |
Microchip Technology UES2603R | Through Hole | 200 mA, 500 ns | 175 ░C | -55 C | 930 mV | 30 A | TO-204AA, TO-3 | Reverse Polarity, Standard | 35 ns | 20 µA |
Description
General part information
UES2603-Rectifier Series
This series of UES2601 through UES2603 combines two high efficiency devices into one package, simplifying installation, reducing heat sink requirements and the need to purchase matched components. Microchip also offers numerous other products to meet higher and lower power voltage regulation applications.
