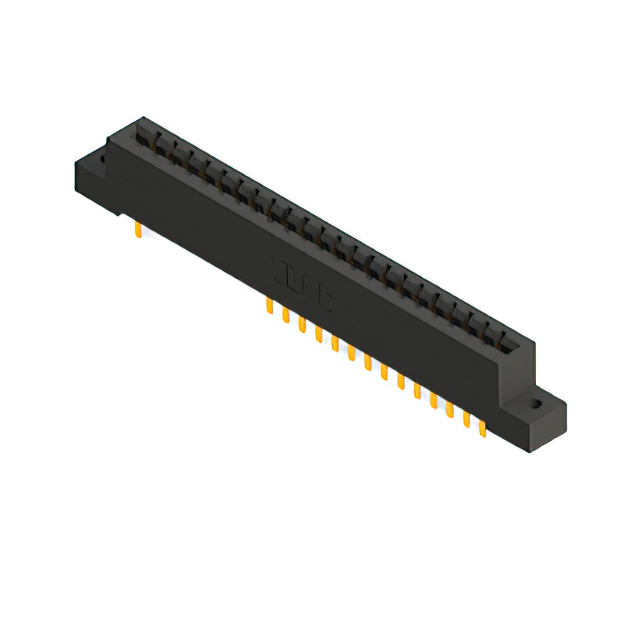

387-044-544-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 44POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-044-544-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 44POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-044-544-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 44 |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
387-044 Series
...
| Part | Read Out | Gender | Card Type | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Positions | Termination Rows | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Flange Feature | Number of Rows | Pitch [x] | Pitch [x] | Color | Contact Finish | Termination | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | Female | Non Specified - Dual Edge | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 44 | 2 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 | 10 Áin | 0.25 Ám | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 0.156 in | 3.96 mm | Black | Gold | Solder | |||
EDAC Inc. | Dual | Female | Non Specified - Dual Edge | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 44 | 2 | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 | 10 Áin | 0.25 Ám | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 2 | 0.156 in | 3.96 mm | Black | Gold | Solder Eyelet(s) | Card Extender | ||
EDAC Inc. | Dual | Female | Non Specified - Dual Edge | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 44 | 2 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 | 10 Áin | 0.25 Ám | Cantilever | Flush Mount Top Opening Unthreaded | 2 | 0.156 in | 3.96 mm | Black | Gold | Wire Wrap | 3.25 mm | 0.128 " | |
EDAC Inc. | Dual | Female | Non Specified - Dual Edge | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 44 | 2 | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 | 10 Áin | 0.25 Ám | Cantilever | 4-40 Threaded Insert Top Mount Opening | 2 | 0.156 in | 3.96 mm | Black | Gold | Wire Wrap | |||
EDAC Inc. | Dual | Female | Non Specified - Dual Edge | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 44 | 2 | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 | 10 Áin | 0.25 Ám | Cantilever | 2 | 0.156 in | 3.96 mm | Black | Gold | Solder | Card Extender | |||
EDAC Inc. | Dual | Female | Non Specified - Dual Edge | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 44 | 2 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 | 10 Áin | 0.25 Ám | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 0.156 in | 3.96 mm | Black | Gold | Solder | |||
EDAC Inc. | Dual | Female | Non Specified - Dual Edge | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 44 | 2 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 | 10 Áin | 0.25 Ám | Cantilever | 4-40 Threaded Insert Top Mount Opening | 2 | 0.156 in | 3.96 mm | Black | Gold | Solder | |||
EDAC Inc. | Dual | Female | Non Specified - Dual Edge | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 44 | 2 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 | 10 Áin | 0.25 Ám | Cantilever | Floating Bobbin Top Mount Opening | 2 | 0.156 in | 3.96 mm | Black | Gold | Solder | 2.95 mm | 0.116 in | |
EDAC Inc. | Dual | Female | Non Specified - Dual Edge | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 44 | 2 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 | 10 Áin | 0.25 Ám | Cantilever | Flush Mount Top Opening Unthreaded | 2 | 0.156 in | 3.96 mm | Black | Gold | Solder | 3.96 mm | 0.156 in | |
EDAC Inc. | Dual | Female | Non Specified - Dual Edge | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 44 | 2 | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 22 | 10 Áin | 0.25 Ám | Cantilever | 4-40 Threaded Insert Top Mount Opening | 2 | 0.156 in | 3.96 mm | Black | Gold | Solder Eyelet(s) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
387-044 Series
44 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
