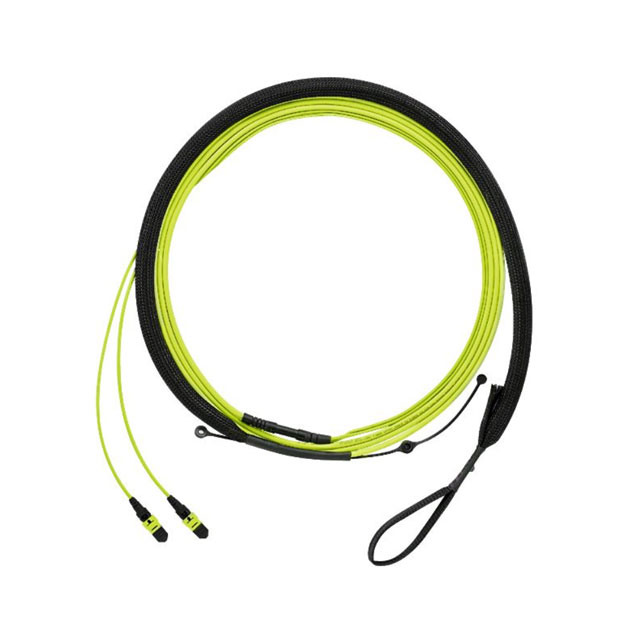

FWUYL7575 Series

...

Part	Insertion Loss	Color - Cable	Return Loss	Color - Connectors	Bend Radius	Operating Temperature (Max)	Operating Temperature (Min)	Type	2nd Connector	Features	1st Connector	Cable Type	Cable Diameter	Ratings
Panduit Corp FWUYL7575KNM044	0.25 dB	Green	30 dB	Black	54 mm	70 °C	-20 °C	Multimode OM5	MPO	Low Smoke Pulling Eye	MPO	Trunk	0.21 "	LSZH
Panduit Corp FWUYL7575KAM065	0.25 dB	Green	30 dB	Black	54 mm	70 °C	-20 °C	Multimode OM5	MPO	Low Smoke Pulling Eye	MPO	Trunk	0.21 "	LSZH
Panduit Corp FWUYL7575KAM079	0.25 dB	Green	30 dB	Black	54 mm	70 °C	-20 °C	Multimode OM5	MPO	Low Smoke Pulling Eye	MPO	Trunk	0.21 "	LSZH
Panduit Corp FWUYL7575LNM042	0.25 dB	Green	30 dB	Black	54 mm	70 °C	-20 °C	Multimode OM5	MPO	Low Smoke	MPO	Trunk	0.21 "	LSZH
Panduit Corp FWUYL7575KAM045	0.25 dB	Green	30 dB	Black	54 mm	70 °C	-20 °C	Multimode OM5	MPO	Low Smoke Pulling Eye	MPO	Trunk	0.21 "	LSZH
Panduit Corp FWUYL7575LAM088	0.25 dB	Green	30 dB	Black	54 mm	70 °C	-20 °C	Multimode OM5	MPO	Low Smoke	MPO	Trunk	0.21 "	LSZH
Panduit Corp FWUYL7575LNM036	0.25 dB	Green	30 dB	Black	54 mm	70 °C	-20 °C	Multimode OM5	MPO	Low Smoke	MPO	Trunk	0.21 "	LSZH
Panduit Corp FWUYL7575LNM045	0.25 dB	Green	30 dB	Black	54 mm	70 °C	-20 °C	Multimode OM5	MPO	Low Smoke	MPO	Trunk	0.21 "	LSZH
Panduit Corp FWUYL7575KNM031	0.25 dB	Green	30 dB	Black	54 mm	70 °C	-20 °C	Multimode OM5	MPO	Low Smoke Pulling Eye	MPO	Trunk	0.21 "	LSZH
Panduit Corp FWUYL7575LAM018	0.25 dB	Green	30 dB	Black	54 mm	70 °C	-20 °C	Multimode OM5	MPO	Low Smoke	MPO	Trunk	0.21 "	LSZH
