8216 010100

Active

Belden Inc.

COAXIAL CABLE, TRANSMISSION & COMPUTER, RG174, 26 AWG, 50 OHM, 100 FT, 30.5 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

8216 010100

Active

Belden Inc.

COAXIAL CABLE, TRANSMISSION & COMPUTER, RG174, 26 AWG, 50 OHM, 100 FT, 30.5 M

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8216 010100

Cable Group	RG-174
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	34 AWG, 7 Strands
Dielectric Diameter [diameter]	1.52 mm
Dielectric Diameter [diameter]	0.06 in
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	2.79 mm
Jacket (Insulation) Diameter [diameter]	0.11 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length [x]	100 ft
Length [x]	30.48 m
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Shield Coverage	90 %
Shield Material	Copper, Tinned
Shield Type	Braid
Wire Gauge	26 AWG

8216 Series

Part	Conductor Material	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Jacket Color	Shield Coverage	Jacket (Insulation) Material	Impedance	Wire Gauge	Shield Material	Conductor Strand	Cable Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Length [x]	Length [x]	Length	Length
Belden Inc. 8216 010100	Copper Coated Steel	Braid	2.79 mm	0.11 in	-40 °C	75 ░C	RG-174	Black	90 %	Poly-Vinyl Chloride (PVC)	50 Ohms	26 AWG	Copper Tinned	7 Strands 34 AWG	Coaxial	1.52 mm	0.06 in	100 ft	30.48 m
Belden Inc. 8216 010500	Copper Coated Steel	Braid	2.79 mm	0.11 in	-40 °C	75 ░C	RG-174	Black	90 %	Poly-Vinyl Chloride (PVC)	50 Ohms	26 AWG	Copper Tinned	7 Strands 34 AWG	Coaxial	1.52 mm	0.06 in			152.4 m	6000 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 1.54
		200	$ 1.48
		300	$ 1.42
		500	$ 1.38
		1000	$ 1.31
		2500	$ 1.23
		5000	$ 1.17
Newark	Spool of 100	1	$ 161.94
		5	$ 155.68
		10	$ 150.31

Description

General part information

8216 Series

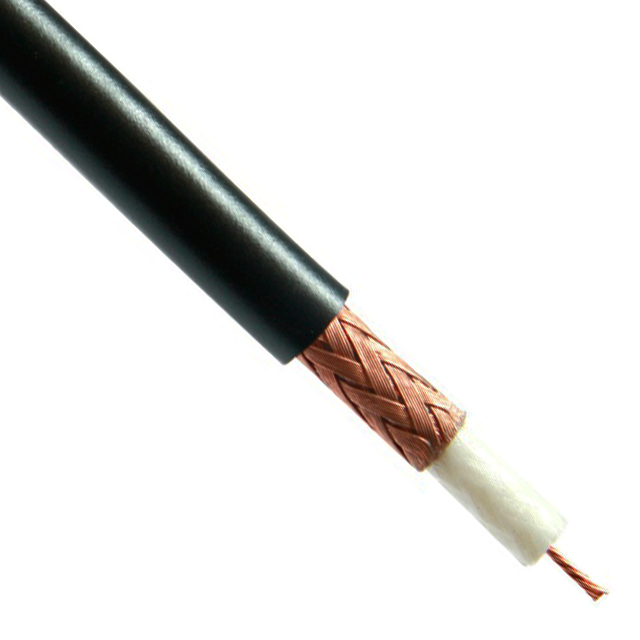

The 8216 010100 is a RG-174/U Coaxial Cable with 0.19-inch bare copper-covered steel conductors, polyethylene insulation and PVC jacket. This cable also features tinned-copper braid shield (90% coverage).
