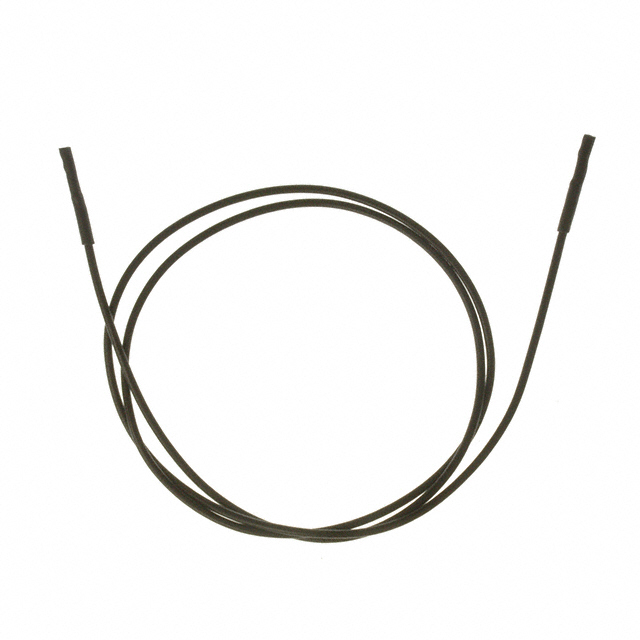

9110-24 BLK

Active

E-Z-Hook

TEST LEAD SOCKET TO SOCKET 24"

Search across all available documentation for this part.

Active

E-Z-Hook

TEST LEAD SOCKET TO SOCKET 24"

Technical Specifications

Parameters and characteristics for this part

TEST LEAD SOCKET TO SOCKET 24"

Part	Wire Gauge	1st Connector	1st Connector	1st Connector	Material - Insulation	Voltage - Rated	Voltage - Rated	2nd Connector	2nd Connector	2nd Connector	Configuration	Temperature Range	Temperature Range	Current Rating (Amps)	Cable Length	Cable Length	Contents
E-Z-Hook 9110-24 BLK	22 AWG	0.025 in	Socket, Square	0.64 mm	Poly-Vinyl Chloride (PVC)	1 kV	1000 V	Socket, Square	0.64 mm	0.025 in	Socket to Socket	105 °C	221 °F	2.5 A	24 "	609.6 mm	1 Lead, Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24.0" (609.60mm) Socket, Square, 0.025" (0.64mm) To Socket, Square, 0.025" (0.64mm) Test Lead 1000VDC (1kV) 1 Lead, Black
