628-3W3-222-2T1
ActiveEDAC Inc.

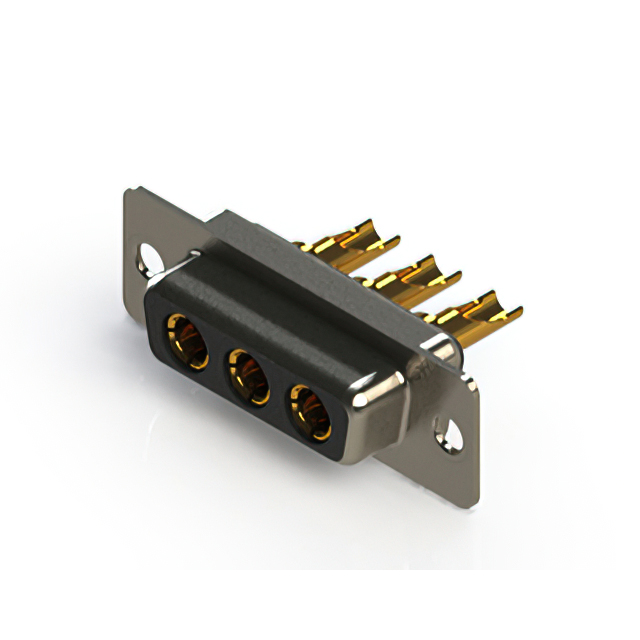

D SUBMINIATURE CONNECTOR, 3 CONTACT(S), FEMALE, 0.27 INCH PITCH, SOLDER TERMINAL, HOLE .12, RECEPTACLE,
Deep-Dive with AI
Search across all available documentation for this part.
628-3W3-222-2T1
ActiveEDAC Inc.
D SUBMINIATURE CONNECTOR, 3 CONTACT(S), FEMALE, 0.27 INCH PITCH, SOLDER TERMINAL, HOLE .12, RECEPTACLE,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 628-3W3-222-2T1 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 20 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | 2 (DA, A) |
| Shell Size, Connector Layout [custom] | 3W3 |
| Voltage Rating | 125 VDC |
628-3W3 Series
...
| Part | Dielectric Material | Contact Material | Contact Finish | Connector Style | Number of Rows | Features | Voltage Rating | Flange Feature | Color | Termination | Mounting Type | Number of Positions | Contact Finish Thickness | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Connector Type | Current Rating (Amps) | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | Combo D-Sub | 1 | Board Lock Shielded | 125 VDC | M3 | Black | Solder | Through Hole | 3 | Flash | Signal and Power | -55 °C | 125 °C | UL94 V-0 | Receptacle Female Sockets | 40 A | 2 (DA A) | 3W3 | |||
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | Combo D-Sub | 1 | Board Lock Shielded | 125 VDC | Board Side (M3) | Black | Solder | Through Hole | 3 | Signal and Power | -55 °C | 125 °C | UL94 V-0 | Receptacle Female Sockets | 40 A | 2 (DA A) | 3W3 | 0.76 Ám | 30 Áin | ||
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | Combo D-Sub | 1 | Shielded | 125 VDC | 4-40 Board Side | Black | Solder | Through Hole | 3 | Signal and Power | -55 °C | 125 °C | UL94 V-0 | Receptacle Female Sockets | 20 A | 2 (DA A) | 3W3 | 0.76 Ám | 30 Áin | Nickel Plated Steel | |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | Combo D-Sub | 1 | Shielded | 125 VDC | Board Side (M3) | Black | Solder | Through Hole | 3 | Flash | Coax Signal | -55 °C | 125 °C | UL94 V-0 | Receptacle Female Sockets | 2 (DA A) | 3W3 | ||||
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | Combo D-Sub | 1 | Board Lock Shielded | 125 VDC | 4-40 Board Side | Black | Solder | Through Hole | 3 | Signal and Power | -55 °C | 125 °C | UL94 V-0 | Receptacle Female Sockets | 40 A | 2 (DA A) | 3W3 | 0.76 Ám | 30 Áin | Nickel Plated Steel | |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | Combo D-Sub | 1 | Shielded | 125 VDC | 4-40 Board Side | Black | Solder | Through Hole | 3 | Flash | Coax Signal | -55 °C | 125 °C | UL94 V-0 | Receptacle Female Sockets | 2 (DA A) | 3W3 | ||||
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | Combo D-Sub | 1 | Board Lock Shielded | 125 VDC | M3 | Black | Solder | Through Hole | 3 | Flash | Coax Signal | -55 °C | 125 °C | UL94 V-0 | Receptacle Female Sockets | 2 (DA A) | 3W3 | Nickel Plated Steel | |||
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | Combo D-Sub | 1 | Shielded | 125 VDC | Housing/Shell (Unthreaded) | Black | Free Hanging (In-Line) | 3 | Signal and Power | -55 °C | 125 °C | UL94 V-0 | Receptacle Female Sockets | 20 A | 2 (DA A) | 3W3 | 0.76 Ám | 30 Áin | |||
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | Combo D-Sub | 1 | Board Lock Shielded | 125 VDC | 4-40 | Black | Solder | Through Hole | 3 | Flash | Coax Signal | -55 °C | 125 °C | UL94 V-0 | Receptacle Female Sockets | 2 (DA A) | 3W3 | Nickel Plated Steel | |||
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | Combo D-Sub | 1 | Shielded | 125 VDC | Housing/Shell (Unthreaded) | Black | Free Hanging (In-Line) | 3 | Flash | Signal and Power | -55 °C | 125 °C | UL94 V-0 | Receptacle Female Sockets | 20 A | 2 (DA A) | 3W3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
628-3W3 Series
3 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
