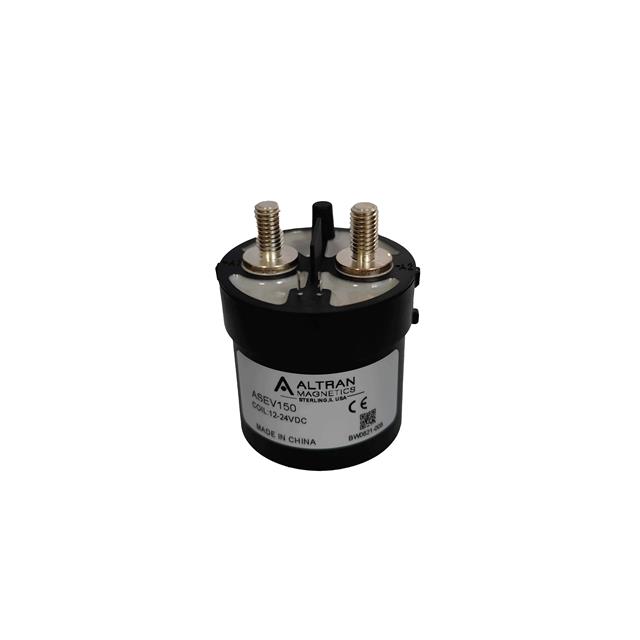

ASEV150-M
ActiveAltran Magnetics, LLC
DC CONTACTOR 150A 12-24 VDC COIL
ASEV150-M
ActiveAltran Magnetics, LLC
DC CONTACTOR 150A 12-24 VDC COIL
Description
General part information
ASEV150-M
DC CONTACTOR 150A 12-24 VDC COIL
Technical Specifications
Parameters and characteristics for this part
| Specification | ASEV150-M |
|---|---|
| Coil Voltage (Max) | 24 VAC/DC |
| Coil Voltage (Min) | 12 VAC/DC |
| Contact Form | Form, X, 1, SPST-NO, DM |
| Contact Rating (Current) | 150 A |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 6 VDC |
| Operate Time | 50 ms |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Release Time | 12 ms |
| Switching Voltage DC (Max) | 900 VDC |
| Termination Style | Stud |
