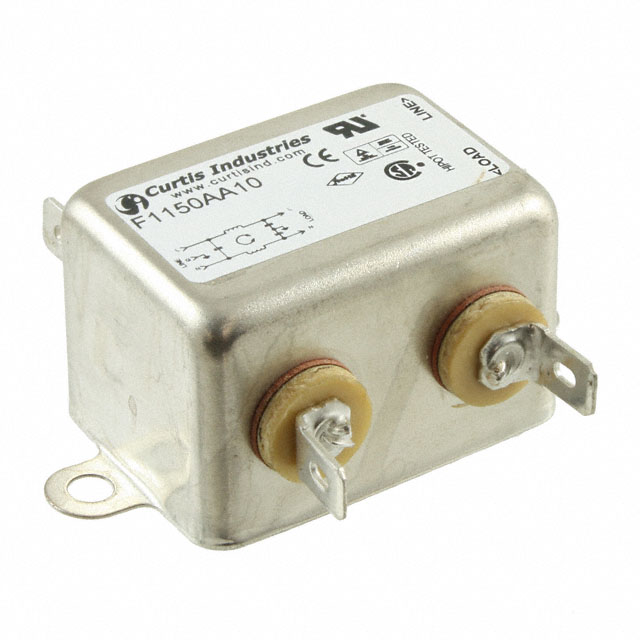

F1150AA10
ActiveCurtis Industries
LINE FILTER 250VAC 10A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F1150AA10
ActiveCurtis Industries
LINE FILTER 250VAC 10A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | F1150AA10 | F1150A Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Approval Agency | CE, UR | CE, UR |
| Configuration | Single Stage | Single Stage |
| Current | 10 A | 1 - 10 A |
| Filter Type | Single Phase | Single Phase |
| Frequency - Operating [Max] | 60 Hz | 60 Hz |
| Frequency - Operating [Min] | 50 Hz | 50 Hz |
| Mounting Type | Chassis Mount | Chassis Mount |
| Termination Style | Quick Connect | Quick Connect |
| Voltage - Rated AC | 250 V | 250 V |
F1150A Series
LINE FILTER 250VAC 1A CHASSIS
| Part | Termination Style | Mounting Type | Approval Agency | Voltage - Rated AC | Current | Configuration | Frequency - Operating [Max] | Frequency - Operating [Min] | Filter Type | Applications |
|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries F1150AA01 | Quick Connect | Chassis Mount | CE, UR | 250 V | 1 A | Single Stage | 60 Hz | 50 Hz | Single Phase | General Purpose |
Curtis Industries F1150AA10 | Quick Connect | Chassis Mount | CE, UR | 250 V | 10 A | Single Stage | 60 Hz | 50 Hz | Single Phase | General Purpose |
Curtis Industries F1150AA06 | Quick Connect | Chassis Mount | CE, UR | 250 V | 6 A | Single Stage | 60 Hz | 50 Hz | Single Phase | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.92 | |
| 10 | $ 10.76 | |||
Description
General part information
F1150A Series
Single Phase EMC/EMI Line Filter 10 A 250V 50/60Hz Single Stage Quick Connect
