786144-1

Obsolete

TE Connectivity AMP Connectors

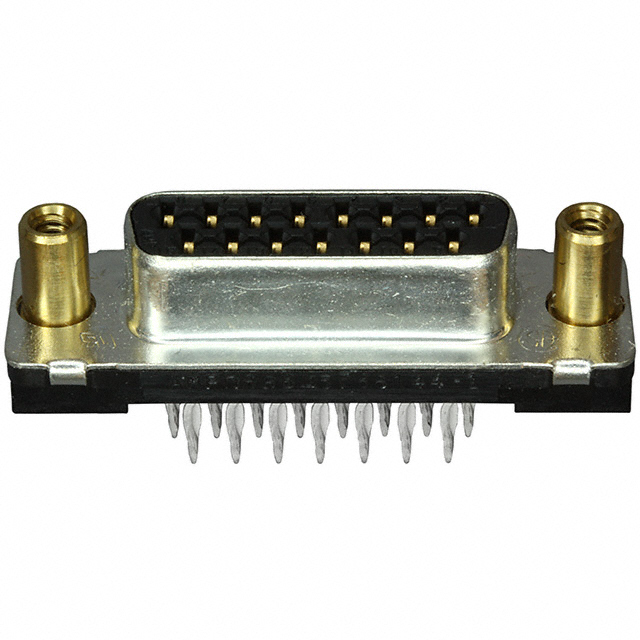

CONN D-SUB RCPT 15P VERT PRESS

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN D-SUB RCPT 15P VERT PRESS

Technical Specifications

Parameters and characteristics for this part

Specification	786144-1

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Tin-Lead Plated
Shell Size, Connector Layout	2
Termination	Press-Fit

CONN D-SUB RCPT 15P VERT PRESS

Part	Number of Positions	Contact Finish	Connector Style	Termination	Shell Size, Connector Layout	Mounting Type	Contact Type	Material Flammability Rating	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Rows	Shell Material, Finish	Connector Type	Contact Material
TE Connectivity AMP Connectors 786144-1	15	Gold	D-Sub	Press-Fit	2	Through Hole	Signal	UL94 V-0	Female Screwlock (4-40), Mating Side	105 ░C	-55 °C	Black	2	Steel, Tin-Lead Plated	Receptacle, Female Sockets	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15 Position D-Sub Receptacle, Female Sockets Connector

Technical documentation and resources

No documents available
