PE9146
ActivePasternack

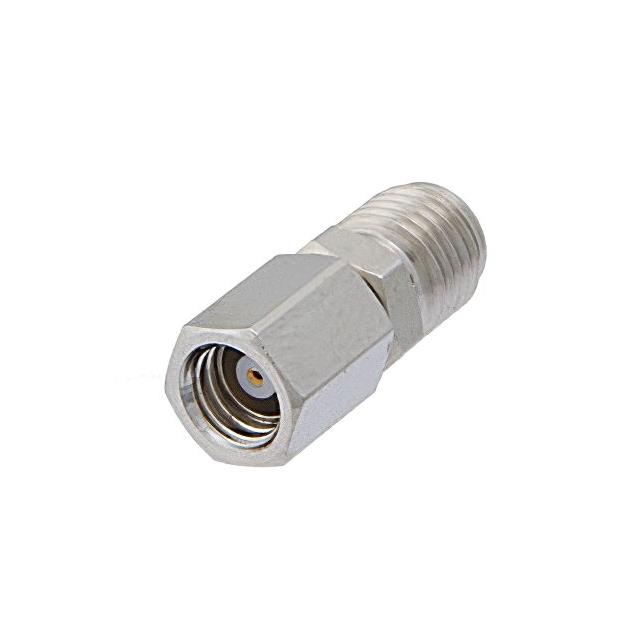

SMA FEMALE TO SMC PLUG ADAPTER
PE9146
ActivePasternack
SMA FEMALE TO SMC PLUG ADAPTER
Description
General part information
PE9146
Adapter Coaxial Connector SMA Jack, Female Socket To SMC Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9146 |
|---|---|
| Adapter Series | SMA to SMC |
| Adapter Type | Plug to Plug |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | SMC Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 10 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
