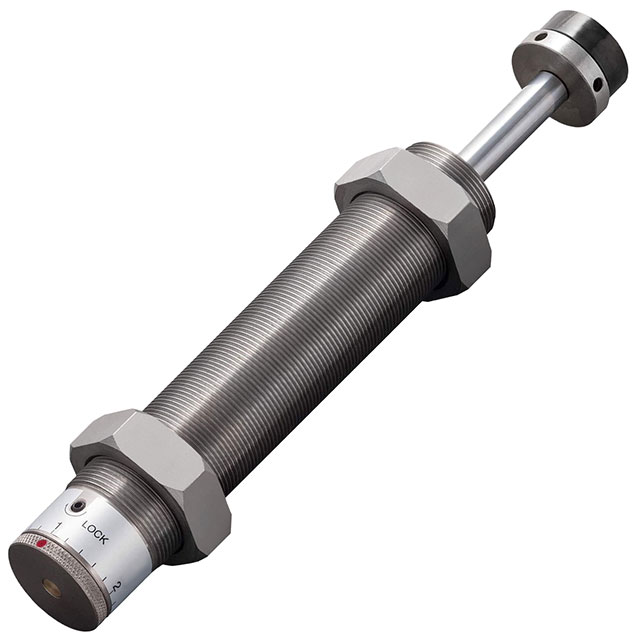

FWM-S3650UBD-C
ActiveBansbach easylift
SHOCK ABSORBER, ADJUSTABLE
FWM-S3650UBD-C
ActiveBansbach easylift
SHOCK ABSORBER, ADJUSTABLE
Description
General part information
FWM-S3650UBD-C
SHOCK ABSORBER, ADJUSTABLE
Technical Specifications
Parameters and characteristics for this part
| Specification | FWM-S3650UBD-C |
|---|---|
| Actuation Force | 5287.77 lbf |
| Cushioning | Adjustable |
| Impact Capacity per Cycle | 3469.47 inlb |
| Impact Velocity | 6.56 ft/s |
| Length - Extended | 12.677 in |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -5 °C |
| Operation | Single-Acting, Push |
| Reset Force | 15.42 lbf |
| Reset Time | 2 s |
| Stroke Length (Linear) | 1.969 in |
| Type | Shock Absorber |
