Description
General part information

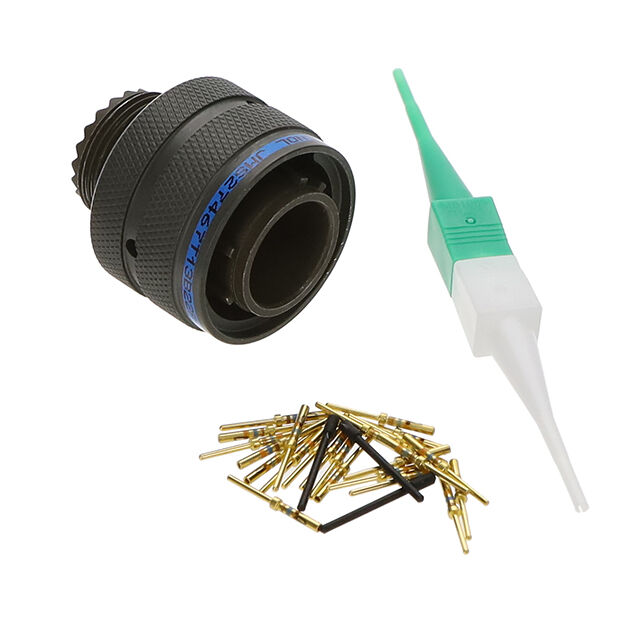

MS27467T13B22P
22 Position Circular Connector Plug, Male Pins Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | MS27467T13B22P |
|---|---|
| Applications | Aviation, Military |
| Color | Olive Drab |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Ingress Protection | Environment Resistant |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 22 |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -65 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Finish | Olive Drab Cadmium, Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert (Maximum) | 22 |
| Shell Size - Insert (Minimum) | 13 |
| Shielding | Shielded |
| Termination | Crimp |
