25076 BK199

Active

ALPHA WIRE

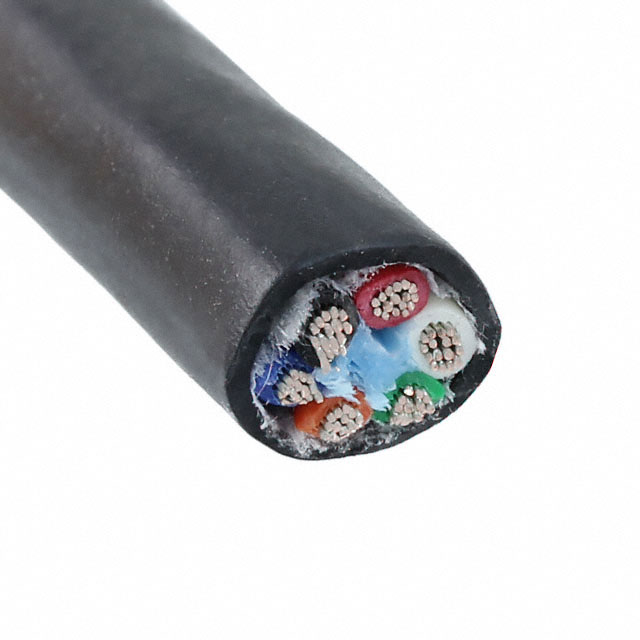

CABLE 6COND 16AWG BLACK 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 6COND 16AWG BLACK 1000'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	25076 BK199	25076 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	19	19
Conductor Strand [custom]	0.0117 in	0.0117 in
Features	Rip Cord, Biological Compatibility	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter	0.343 in	0.343 in
Jacket (Insulation) Diameter	8.71 mm	8.71 mm
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Black	Black, Yellow
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Number of Conductors	6	6
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 20668, ISO 10993	UL Style 20668, ISO 10993
Voltage	300 V	300 V
Wire Gauge	16 AWG	16 AWG

CABLE 6COND 16AWG BLACK 1000'

Part	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Features	Ratings	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Wire Gauge	Jacket Color	Conductor Material	Length	Length	Jacket (Insulation) Material	Cable Type
ALPHA WIRE 25076 BK199	19	0.0117 in	300 V	Poly-Vinyl Chloride (PVC)	-30 ░C	90 °C	6	Biological Compatibility, Rip Cord	ISO 10993, UL Style 20668	0.343 in	8.71 mm	16 AWG	Black	Copper, Tinned	1000 ft	304.8 m	Polyurethane (PU)	Multi-Conductor
ALPHA WIRE 25076 YL199	19	0.0117 in	300 V	Poly-Vinyl Chloride (PVC)	-30 ░C	90 °C	6	Biological Compatibility, Rip Cord	ISO 10993, UL Style 20668	0.343 in	8.71 mm	16 AWG	Yellow	Copper, Tinned	1000 ft	304.8 m	Polyurethane (PU)	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 9.60

General part information

6 Conductor Multi-Conductor Cable Black 16 AWG 1000.0' (304.8m)
