TA5MLWX

Active

Switchcraft Inc.

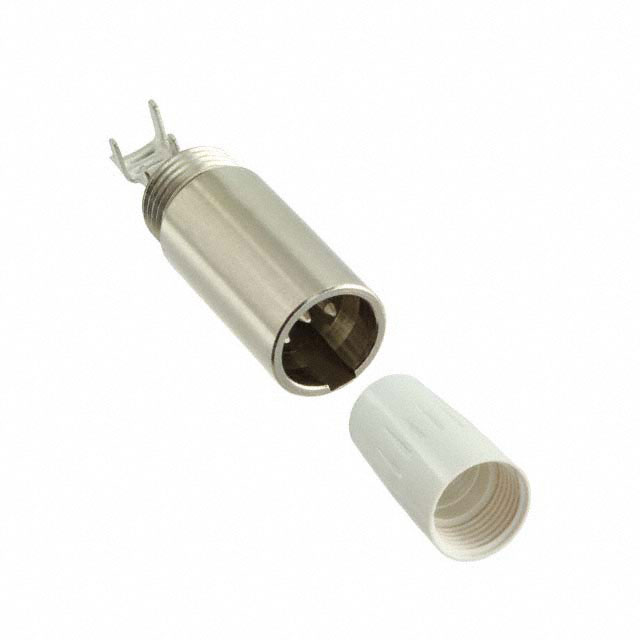

CONN MINI XLR CONNECTOR M 5 POS ST CABLE MOUNT 5 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN MINI XLR CONNECTOR M 5 POS ST CABLE MOUNT 5 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	TA5MLWX

Applications	Audio
Backshell Material, Plating	Thermoplastic
Cable Opening [custom]	4.32 mm
Cable Opening [custom]	0.17 in
Color	White, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Fastening Type	Latch Lock
Features	Cable Clamp, Backshell
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Shielding	Shielded
Termination	Solder
Voltage Rating	125 VAC

CONN MINI XLR CONNECTOR M 5 POS ST CABLE MOUNT 5 TERMINAL 1 PORT

Part	Features	Cable Opening [custom]	Cable Opening [custom]	Insert Material	Contact Material	Shell Finish	Current Rating (Amps)	Fastening Type	Primary Material	Shielding	Termination	Color	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Backshell Material, Plating	Shell Size - Insert	Applications	Connector Type	Orientation	Mounting Type	Material Flammability Rating	Shell Material
Switchcraft Inc. TA5MLWX	Backshell, Cable Clamp	4.32 mm	0.17 in	Polyphenylene Sulfide (PPS)	Copper Alloy	Nickel	4 A	Latch Lock	Metal	Shielded	Solder	Silver, White	Silver	85 °C	-55 °C	125 VAC	Thermoplastic	Mini XLR	Audio	Male Pins, Receptacle	Keyed	Free Hanging (In-Line)	UL94 V-0	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder
