AIT-4463
ActiveAllied Components International
16UH30% 4-PIN THRU-HOLE VERTMNT
AIT-4463
ActiveAllied Components International
16UH30% 4-PIN THRU-HOLE VERTMNT
Description
General part information

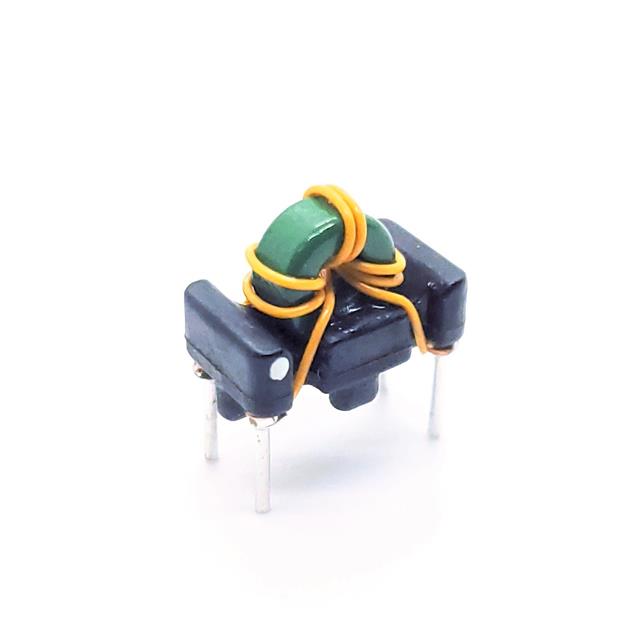

AIT-4463
16µH Gate Drive Pulse Transformer 1:1 Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | AIT-4463 |
|---|---|
| Height - Seated (Max) | 0.433 in |
| Inductance | 16 µH |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.287 in |
| Transformer Type | Gate Drive |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
