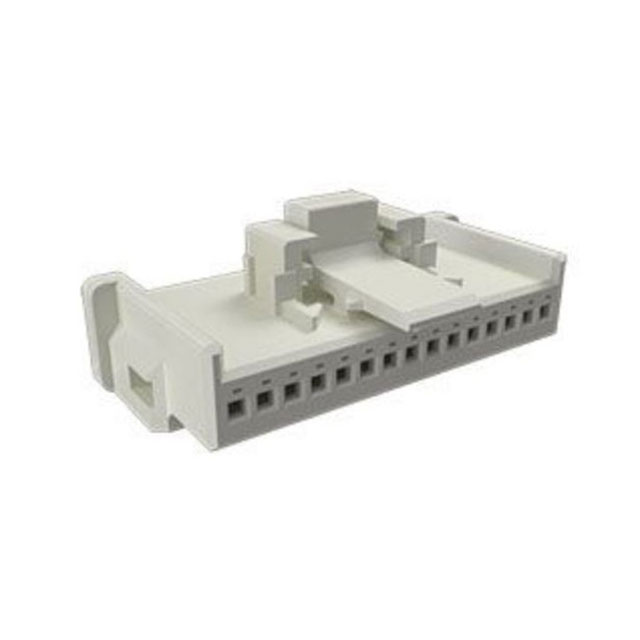

10157554-01511LF

Obsolete

Amphenol ICC (FCI)

CONN RCPT HSG 15POS 1.25MM

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN RCPT HSG 15POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	10157554-01511LF

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Connector Position Assurance (CPA), Terminal Position Assurance (TPA)
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	15
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm

Part	Color	Features	Number of Rows	Insulation Material	Note	Contact Termination	Contact Type	Pitch [x]	Pitch [x]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Positions	Mounting Type
Amphenol ICC (FCI) 10157554-01511LF	Natural	Connector Position Assurance (CPA) Terminal Position Assurance (TPA)	1	Polyamide (PA66) Nylon 6/6	Contacts Not Included	Crimp	Female Socket	0.049 in	1.25 mm	Receptacle	-40 °C	105 ░C	Latch Lock	15	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15 Rectangular Connectors - Housings Receptacle Natural 0.049" (1.25mm)
