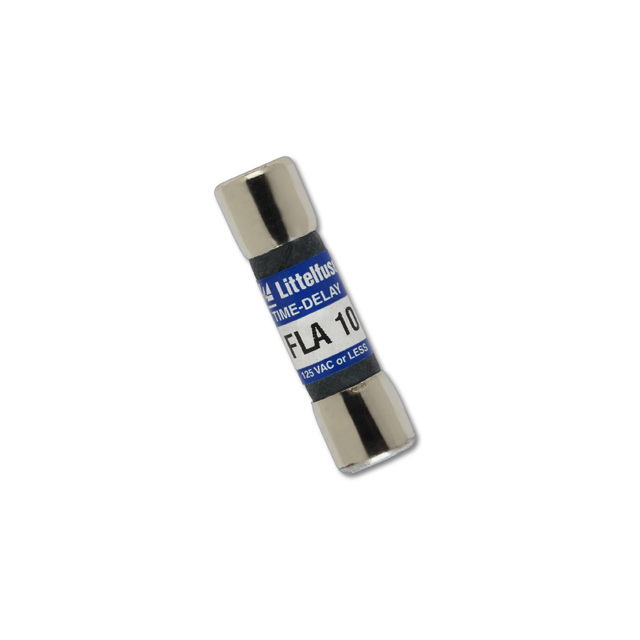

0FLA2.25T
ObsoleteLITTELFUSE
FUSE CARTRIDGE 2.25A 125VAC 5AG
0FLA2.25T
ObsoleteLITTELFUSE
FUSE CARTRIDGE 2.25A 125VAC 5AG
Description
General part information
0FLA2.25T
2.25A 125 VAC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | 0FLA2.25T |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UL |
| Breaking Capacity | 10 kA |
| Current Rating | 2.25 A |
| DC Cold Resistance | 0.3557 Ohms |
| Features | Indicating |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | 5AG, 10mm x 38mm (Midget) |
| Package Features | Midget |
| Package Length | 10 mm |
| Package Name | 5AG Midget, 5AG |
| Package Width | 38 mm |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.406 in |
| Size / Dimension Length | 1.5 in |
| Voltage Rating - AC | 125 V |
