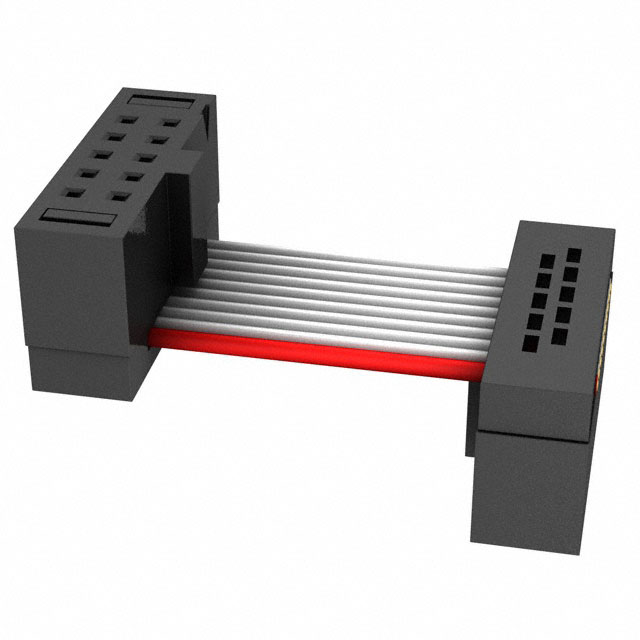

FFSD-05-D-10.00-01-N-RW-R

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFSD-05-D-10.00-01-N-RW-R

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-05-D-10.00-01-N-RW-R

Cable Termination	IDC
Connector Type	Socket to Socket, Reversed
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Reverse Wiring
Length	10 in
Length	0.833 ft
Length	254 mm
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFSD-05 Series

...

Part	Features	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Shielding	Pitch - Cable [x]	Pitch - Cable	Number of Positions	Number of Rows	Length [x]	Length [x]	Length [x]	Contact Finish	Connector Type	Cable Termination	Length	Length	Length	Length
Samtec Inc. FFSD-05-D-04.75-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2	4.75 "	0.396 '	120.65 mm	Gold	Socket to Socket	IDC
Samtec Inc. FFSD-05-S-07.80-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2				Gold	Socket to Cable	IDC	0.65 '	7.8 "	198.12 mm
Samtec Inc. FFSD-05-D-15.70-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2		1.31 ft	398.78 mm	Gold	Socket to Socket	IDC
Samtec Inc. FFSD-05-D-11.05-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2	11.05 "	0.921 '	280.67 mm	Gold	Socket to Socket	IDC
Samtec Inc. FFSD-05-D-66.00-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2				Gold	Socket to Socket	IDC			1.68 m	5.5 ft
Samtec Inc. FFSD-05-D-06.25-01-N-R	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2	6.25 in	0.521 ft	158.75 mm	Gold	Socket to Socket Reversed	IDC
Samtec Inc. FFSD-05-D-04.25-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2	4.25 "	0.354 ft	107.95 mm	Gold	Socket to Socket	IDC
Samtec Inc. FFSD-05-D-10.00-01-N-RW-R	Polarizing Key Reverse Wiring	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2				Gold	Socket to Socket Reversed	IDC		10 in	254 mm	0.833 ft
Samtec Inc. FFSD-05-D-03.00-01-N-RW-R	Polarizing Key Reverse Wiring	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2				Gold	Socket to Socket Reversed	IDC		3 "	76.2 mm	0.25 ft
Samtec Inc. FFSD-05-S-02.40-01-N	Polarizing Key	0.05 in	1.27 mm	10 Áin	0.25 Ám	Unshielded	0.025 in	0.64 mm	10	2				Gold	Socket to Cable	IDC		2.4 "	60.96 mm	0.2 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.07

Description

General part information

FFSD-05 Series

10 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.833' (254.00mm, 10.00")

Documents

Technical documentation and resources
