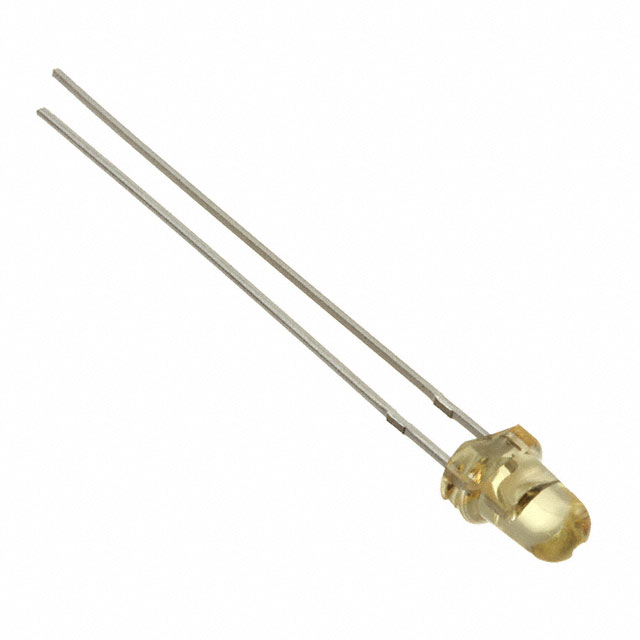

FKY3863X
ObsoleteStanley Electric Co
LED YELLOW CLEAR ROUND T/H
FKY3863X
ObsoleteStanley Electric Co
LED YELLOW CLEAR ROUND T/H
Description
General part information
FKY3863X
Yellow 590nm LED Indication - Discrete 2.3V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | FKY3863X |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 6.4 mm |
| Lens Color | Yellow |
| Lens Diameter | 3.1 mm |
| Lens Style | Round, Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 2800 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension Diameter | 3.85 mm |
| Voltage - Forward (Vf) (Typ) | 2.3 V |
| Wavelength - Dominant | 590 nm |
| Wavelength - Peak | 592 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
