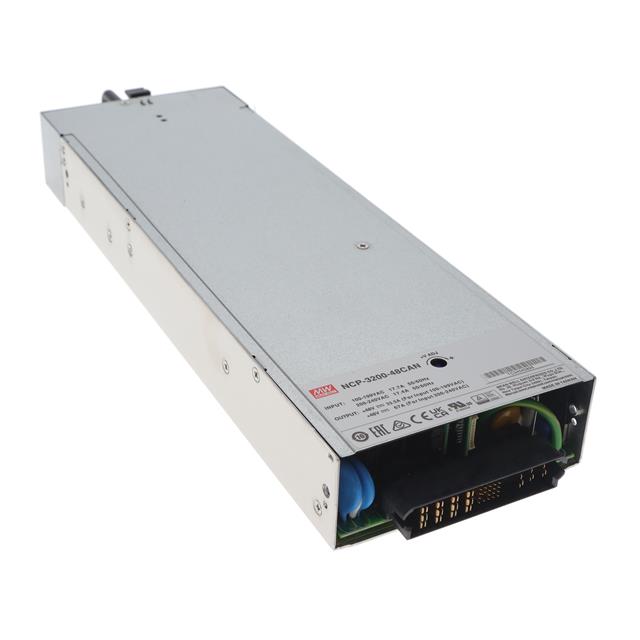

NCP-3200-48CAN
ActiveMEAN WELL USA Inc.
O/P +48V67A
NCP-3200-48CAN
ActiveMEAN WELL USA Inc.
O/P +48V67A
Description
General part information
NCP-3200-48CAN
Enclosed AC DC Converters 1 Output 48V 90 ~ 264 VAC, 127 ~ 400 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | NCP-3200-48CAN |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, EAC, CB, UKCA, TUV, CE |
| Current - Output 1 | 67 A |
| Efficiency | 94.5 % |
| Features | Standby Output, Adjustable Output, Remote On/Off, PMBus™, Universal Input, PFC, Remote Sense, I2C Interface |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 3.216 kW |
| Size / Dimension Height | 1.61 in |
| Size / Dimension Length | 12.8 in |
| Size / Dimension Width | 4.21 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Input (DC) Maximum | 400 V |
| Voltage - Input (DC) Minimum | 127 VDC |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 48 V |
