Technical Specifications
Parameters and characteristics for this part
| Specification | SG-8018CG 4.6453M-TJHSA0 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 1.1 µA |
| Current - Supply (Max) | 3.5 mA |
| Frequency | 4.6453 MHz |
| Frequency Stability | 50 ppm |
| Function | Standby (Power Down) |
| Height - Seated (Max) | 0.031 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Package Length | 2.5 mm |
| Package Name | 4-SMD |
| Package Width | 2 mm |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply (Maximum) | 3.63 V |
| Voltage - Supply (Minimum) | 1.62 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.58 | <6d |
CAD
3D models and CAD resources for this part
Description
General part information

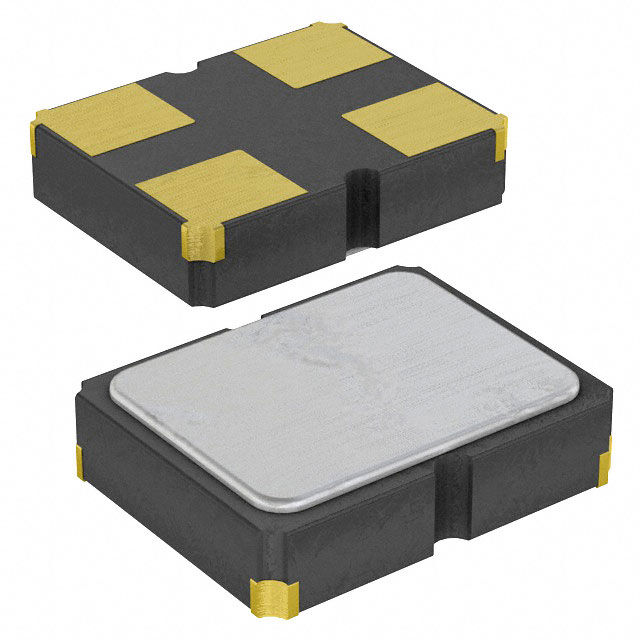

SG-8018CG 4.6453M-TJHSA0
4.6453 MHz XO (Standard) CMOS Oscillator 1.62V ~ 3.63V Standby (Power Down) 4-SMD, No Lead
