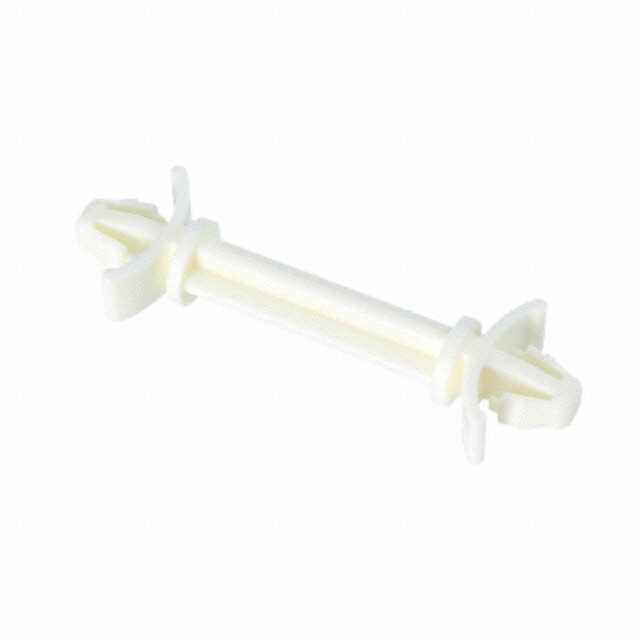

Specification	DLCBSHD-35M-19

Between Board Height	1.378 in
Features	Winged
Holding Type	Snap Lock
Length - Overall	2.071 in
Material	Nylon
Mounting Hole Diameter	0.25 in
Mounting Panel Thickness (Max)	0.087 in
Mounting Panel Thickness (Min)	0.031 in
Mounting Type	Snap Lock
Support Hole Diameter	0.25 in
Support Hole Diameter (Alternate)	1/4"
Support Panel Thickness (Max)	0.087 in
Support Panel Thickness (Min)	0.031 in

DLCBS Series

Part	Features	Holding Type	Between Board Height	Mounting Type	Support Hole Diameter (Alternate)	Support Hole Diameter	Mounting Hole Diameter	Support Panel Thickness (Min)	Support Panel Thickness (Max)	Mounting Panel Thickness (Min)	Mounting Panel Thickness (Max)	Length - Overall	Material
Essentra Components DLCBSHD-20M-01	Winged	Snap Lock	0.787 in	Snap Lock	1/4"	0.25 in	0.25 in	0.031 in	0.087 in	0.031 in	0.087 in	1.48 in	Nylon
Essentra Components DLCBS-8-01	Winged	Snap Lock	0.5 in	Snap Lock	5/32"	0.156 in	0.156 in	0.031 in	0.078 in	0.031 in	0.078 in	1.161 in	Nylon
Essentra Components DLCBS-10-01	Winged	Snap Lock	0.625 in	Snap Lock	5/32"	0.156 in	0.156 in	0.031 in	0.078 in	0.031 in	0.078 in	1.287 in	Nylon
Essentra Components DLCBSHD-25M-19	Winged	Snap Lock	0.984 in	Snap Lock	1/4"	0.25 in	0.25 in	0.031 in	0.087 in	0.031 in	0.087 in	1.677 in	Nylon
Essentra Components DLCBSHD-10M-01	Winged	Snap Lock	0.394 in	Snap Lock	1/4"	0.25 in	0.25 in	0.031 in	0.087 in	0.031 in	0.087 in	1.087 in	Nylon
Essentra Components DLCBS4-4-01	Winged	Snap Lock	0.24 in	Snap Lock	5/32"	0.156 in	0.187 in	0.051 in	0.078 in	0.031 in	0.078 in	0.831 in	Nylon
Essentra Components DLCBS-14-01	Winged	Snap Lock	0.875 in	Snap Lock	5/32"	0.156 in	0.156 in	0.031 in	0.078 in	0.031 in	0.078 in	1.535 in	Nylon
Essentra Components DLCBS4-5-01	Winged	Snap Lock	0.358 in	Snap Lock	5/32"	0.156 in	0.187 in	0.051 in	0.078 in	0.031 in	0.078 in	0.945 in	Nylon
Essentra Components DLCBS4-8-01	Winged	Snap Lock	0.74 in	Snap Lock	5/32"	0.156 in	0.187 in	0.051 in	0.078 in	0.031 in	0.078 in	1.331 in	Nylon
Essentra Components DLCBS-12-19	Winged	Snap Lock	0.75 in	Snap Lock	5/32"	0.156 in	0.156 in	0.031 in	0.078 in	0.031 in	0.078 in	1.413 in	Nylon
