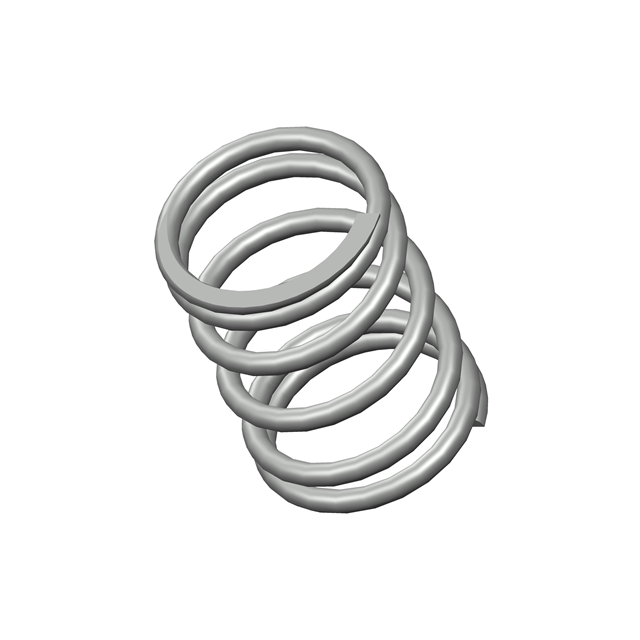

3911CS
ActiveCentury Spring Corp
COMP O= .625,L= .88,W= .062
3911CS
ActiveCentury Spring Corp
COMP O= .625,L= .88,W= .062
Description
General part information
3911CS
COMP O= .625,L= .88,W= .062
Technical Specifications
Parameters and characteristics for this part
| Specification | 3911CS |
|---|---|
| Diameter - Inside | 0.501 in |
| Diameter - Outside | 0.625 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 0.88 in |
| Material | Hard Drawn |
| Rate (lbs/in) | 30 lbs/in |
| Type | Compression |
| Wire Diameter | 0.062 in |
