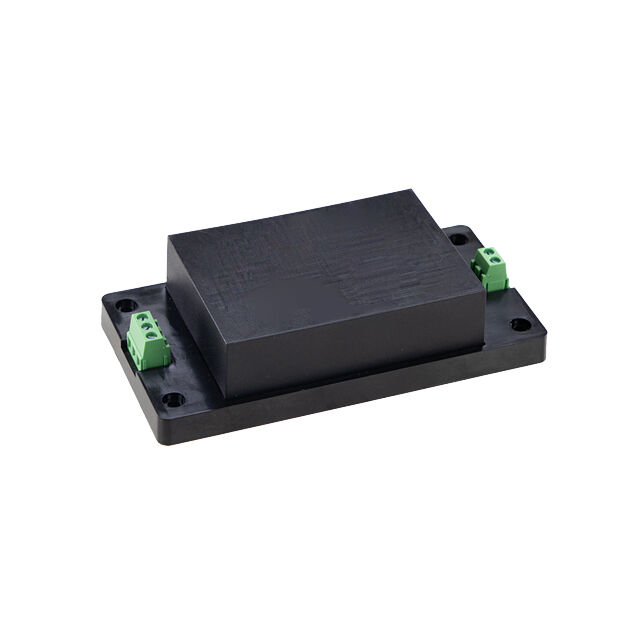

DDRH-30-24ST
ActiveMEAN WELL USA Inc.
I/P:150~1500VDC;O/P:24V/0~1.25A
DDRH-30-24ST
ActiveMEAN WELL USA Inc.
I/P:150~1500VDC;O/P:24V/0~1.25A
Description
General part information
DDRH-30-24ST
Enclosed, High Voltage DC DC Converter 1 Output 24V 1.25A 1500V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | DDRH-30-24ST |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UKCA, CE, EAC |
| Current - Output (Max) | 1.25 A |
| Efficiency | 91 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 30 W |
| Size / Dimension Height | 1.26 in |
| Size / Dimension Length | 5.32 in |
| Size / Dimension Width | 2.76 in |
| Type | High Voltage, Enclosed |
| Voltage - Input (Max) | 1500 V |
| Voltage - Input (Min) | 150 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 24 V |
