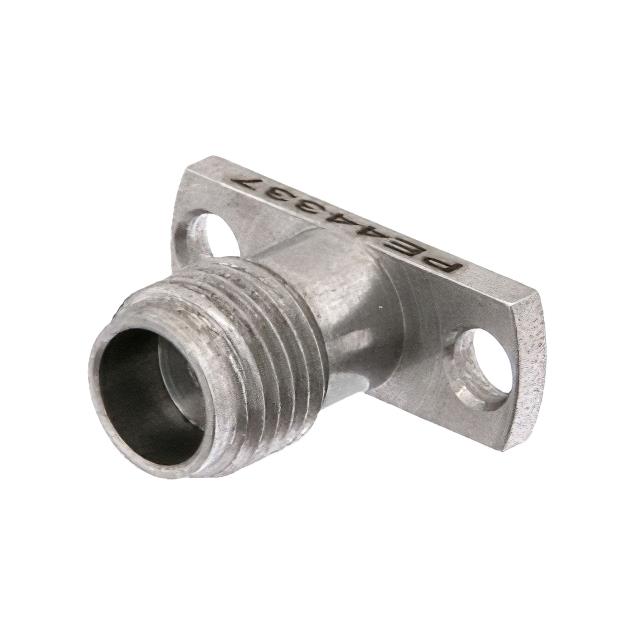

PE44337
ActivePasternack
1.85MM FEMALE FIELD REPLACEABLE
PE44337
ActivePasternack
1.85MM FEMALE FIELD REPLACEABLE
Description
General part information
PE44337
1.85mm Connector Receptacle, Female Socket 50 Ohms Panel Mount; Surface Mount Compression
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44337 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Plug Diameter | 1.85 mm |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Compression |
| Dielectric Material | Polyphenylene Oxide (PPO) |
| Fastening Type | Threaded |
| Frequency - Max | 65 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Insertion Loss | 0.41 dB |
| Mating Cycles | 500 cycles |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount, Surface Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Screw |
