Description
General part information

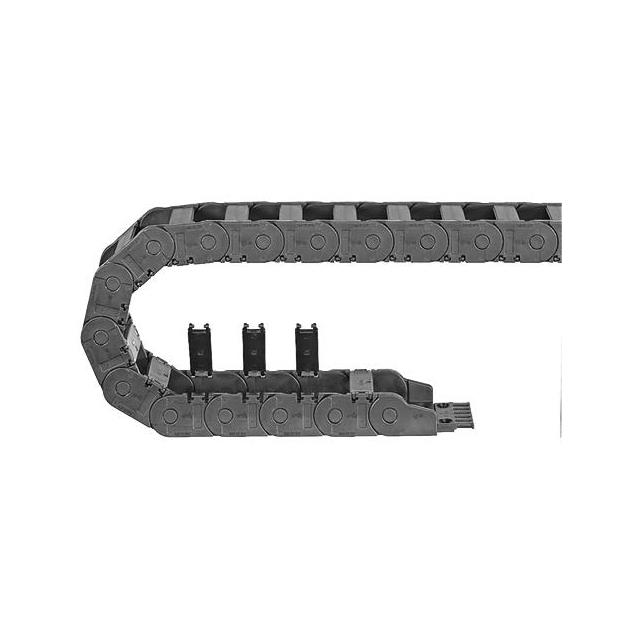

240-12-055-0
CBLE CARRIER 1.38H X 4.92W 1=1FT
Technical Specifications
Parameters and characteristics for this part
| Specification | 240-12-055-0 |
|---|---|
| Cavity Height | 0.98 in |
| Cavity Width | 4.92 in |
| Frame Type | Open |
| Link Pitch | 1.81 in |
| Loading Side | Inside, Outside Bend |
| Material | Igumid G |
| Minimum Bend Radius | 2.17 in |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Outer Height | 1.38 in |
| Outer Width | 5.55 in |
