TSL0808RA-102KR26-PF
ObsoleteTDK Corporation
FIXED IND 1MH 260MA 2.2 OHM TH
TSL0808RA-102KR26-PF
ObsoleteTDK Corporation
FIXED IND 1MH 260MA 2.2 OHM TH
Description
General part information
TSL0808RA-102KR26-PF

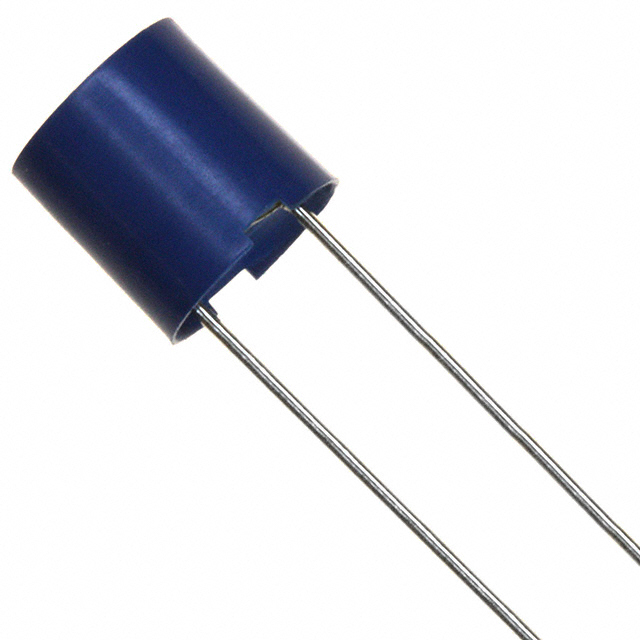

1 mH Unshielded Inductor 260 mA 2.2Ohm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | TSL0808RA-102KR26-PF |
|---|---|
| Current - Saturation (Isat) | 0.26 mA |
| Current Rating | 0.26 A |
| DC Resistance (DCR) (Max) | 2.2 Ohm |
| Frequency - Self Resonant | 1.3 MHz |
| Height - Seated (Max) | 0.346 in |
| Inductance | 1 mH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | Vertical Cylinder, Radial |
| Q | 30 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.335 in |
| Tolerance | 10 % |
