8804000101
ActiveNovus Automation

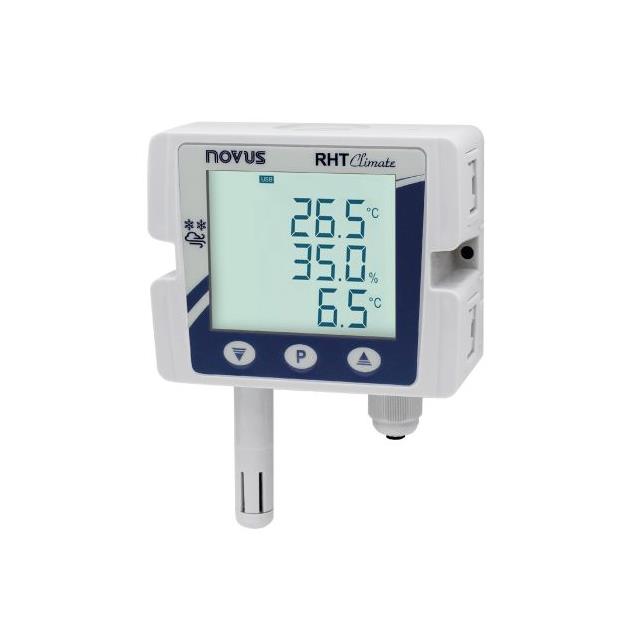

TEMPERATURE HUMIDITY TRANSMITTER
8804000101
ActiveNovus Automation
TEMPERATURE HUMIDITY TRANSMITTER
Description
General part information
8804000101
Humidity, Temperature 0 ~ 100% RH Analog Current, Analog Voltage
Technical Specifications
Parameters and characteristics for this part
| Specification | 8804000101 |
|---|---|
| Humidity Range (Maximum) | 100 % RH |
| Humidity Range (Minimum) | 0 % RH |
| Output Current Range 1 (Max) | 20 mA |
| Output Current Range 1 (Min) | 4 mA |
| Output Type | Analog Current, Analog Voltage |
| Output Voltage Range 1 (Max) | 10 V |
| Output Voltage Range 1 (Min) | 0 V |
| Sensitivity | 1 mA/A, 0.1 °C |
| Sensitivity (Humidity) | 0.1 % RH |
| Sensitivity (Temperature) | 0.1 °C |
| Sensor Type | Temperature, Humidity |
