A23C
ActiveEnergizer Battery Company
BATTERY ALKALINE 12V A23
A23C
ActiveEnergizer Battery Company
BATTERY ALKALINE 12V A23
Description
General part information
A23C

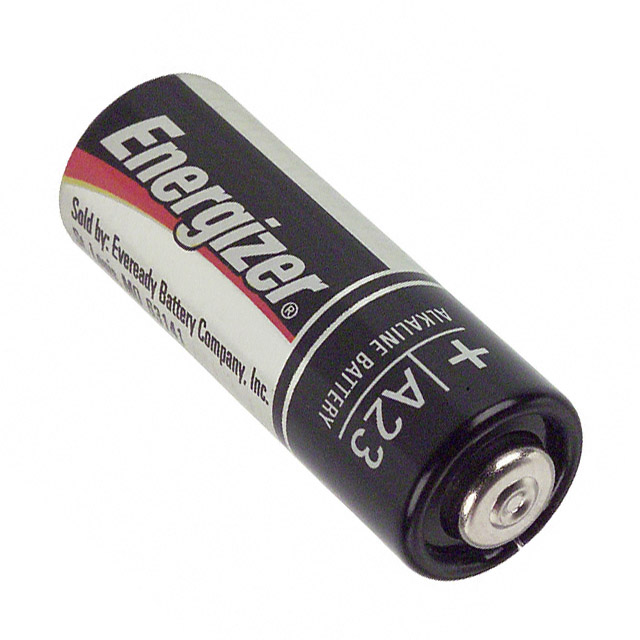

A23 Alkaline Manganese Dioxide 12 V Battery Non-Rechargeable (Primary)
Technical Specifications
Parameters and characteristics for this part
| Specification | A23C |
|---|---|
| Battery Cell Size | A23 |
| Battery Chemistry | Alkaline Manganese Dioxide |
| Capacity (Charge) | 55 mAh |
| Discharge Rate (Current) | 480 µA |
| Size / Dimension Diameter | 0.41 in |
| Size / Dimension Height | 1.12 in |
| Storage/Refrigeration Temperature (Maximum) | 122 °F |
| Storage/Refrigeration Temperature (Minimum) | -40 °F |
| Termination Style | Button Top (Extending) |
| Voltage - Rated | 12 VAC |
| Weight | 8.55 g |
