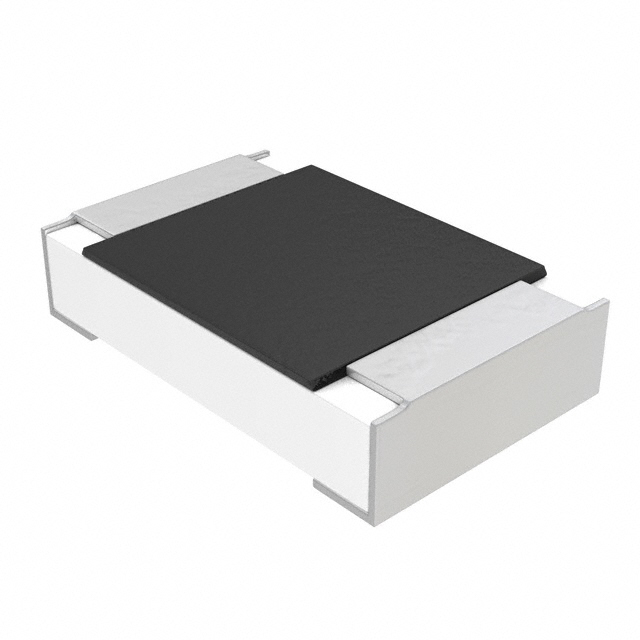

MCU08050D2151BP100

Active

Vishay Beyschlag/Draloric/BC Components

RES 2.15K OHM 0.1% 1/8W 0805

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MCU08050D2151BP100

Active

Vishay Beyschlag/Draloric/BC Components

RES 2.15K OHM 0.1% 1/8W 0805

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MCU08050D2151BP100	MCU0805 Series

Composition	Thin Film	Thin Film
Features	Anti-Sulfur	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Height - Seated (Max)	-	0.024 in
Height - Seated (Max)	-	0.62 mm
Height - Seated (Max) [Max] [z]	0.022 in	0.022 in
Height - Seated (Max) [Max] [z]	0.55 mm	0.55 mm
Number of Terminations	2	2
Operating Temperature [Max]	125 °C	125 - 347 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0805	0805
Power (Watts)	0.125 W	0.125 W
Power (Watts)	0.125 W	0.125 - 0.4 W
Power (Watts)	-	0.4 W
Ratings	-	AEC-Q200
Resistance	2.15 kOhms	0 - 750000 kOhms
Size / Dimension [x]	2 mm	2 mm
Size / Dimension [x]	0.079 in	0.079 in
Size / Dimension [y]	0.049 in	0.049 in
Size / Dimension [y]	1.25 mm	1.25 mm
Supplier Device Package	0805	0805
Temperature Coefficient	25 ppm/°C	10 - 50 ppm/°C
Temperature Coefficient	-	Ý25ppm/¯C
Tolerance	0.1 %	0.1 - 1 %
Tolerance	-	Jumper, Ý0.1%

MCU0805 Series

RES 24K OHM 0.1% 1/8W 0805

...

Part	Tolerance	Number of Terminations	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Composition	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Power (Watts)	Power (Watts)	Resistance	Supplier Device Package	Temperature Coefficient
Vishay Beyschlag/Draloric/BC Components MCU08050D2402BP500	0.1 %	2	-55 °C	125 °C	Anti-Sulfur	2 mm	0.079 in	0.049 in	1.25 mm	0805	Thin Film	0.022 in	0.55 mm	0.125 W	0.125 W	24 kOhms	0805	25 ppm/°C
Vishay Beyschlag/Draloric/BC Components MCU08050C3830FP500	1 %	2	-55 °C	155 °C	Anti-Sulfur	2 mm	0.079 in	0.049 in	1.25 mm	0805	Thin Film	0.022 in	0.55 mm	0.125 W	0.125 W	383 Ohms	0805	50 ppm/°C
Vishay Beyschlag/Draloric/BC Components MCU08050D6193BP100	0.1 %	2	-55 °C	125 °C	Anti-Sulfur	2 mm	0.079 in	0.049 in	1.25 mm	0805	Thin Film	0.022 in	0.55 mm	0.125 W	0.125 W	619 kOhms	0805	25 ppm/°C
Vishay Beyschlag/Draloric/BC Components MCU08050C9098FP500	1 %	2	-55 °C	155 °C	Anti-Sulfur	2 mm	0.079 in	0.049 in	1.25 mm	0805	Thin Film	0.022 in	0.55 mm	0.125 W	0.125 W	9.09 Ohms	0805	50 ppm/°C
Vishay Beyschlag/Draloric/BC Components MCU08050D4991CP100	0.25 %	2	-55 °C	125 °C	Anti-Sulfur	2 mm	0.079 in	0.049 in	1.25 mm	0805	Thin Film	0.022 in	0.55 mm	0.125 W	0.125 W	4.99 kOhms	0805	25 ppm/°C
Vishay Beyschlag/Draloric/BC Components MCU08050C5101DP500		2	-55 °C	155 °C	Anti-Sulfur	2 mm	0.079 in	0.049 in	1.25 mm	0805	Thin Film	0.022 in	0.55 mm	0.125 W	0.125 W	5.1 kOhms	0805	50 ppm/°C
Vishay Beyschlag/Draloric/BC Components MCU08050D3302BP100	0.1 %	2	-55 °C	125 °C	Anti-Sulfur	2 mm	0.079 in	0.049 in	1.25 mm	0805	Thin Film	0.022 in	0.55 mm	0.125 W	0.125 W	33 kOhms	0805	25 ppm/°C
Vishay Beyschlag/Draloric/BC Components MCU08050C3908FP500	1 %	2	-55 °C	155 °C	Anti-Sulfur	2 mm	0.079 in	0.049 in	1.25 mm	0805	Thin Film	0.022 in	0.55 mm	0.125 W	0.125 W	3.9 Ohms	0805	50 ppm/°C
Vishay Beyschlag/Draloric/BC Components MCU08050D7870BP500	0.1 %	2	-55 °C	125 °C	Anti-Sulfur	2 mm	0.079 in	0.049 in	1.25 mm	0805	Thin Film	0.022 in	0.55 mm	0.125 W	0.125 W	787 Ohms	0805	25 ppm/°C
Vishay Beyschlag/Draloric/BC Components MCU08050D3652BP500	0.1 %	2	-55 °C	125 °C	Anti-Sulfur	2 mm	0.079 in	0.049 in	1.25 mm	0805	Thin Film	0.022 in	0.55 mm	0.125 W	0.125 W	36.5 kOhms	0805	25 ppm/°C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.18

Description

General part information

MCU0805 Series

2.15 kOhms ±0.1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Anti-Sulfur Thin Film
