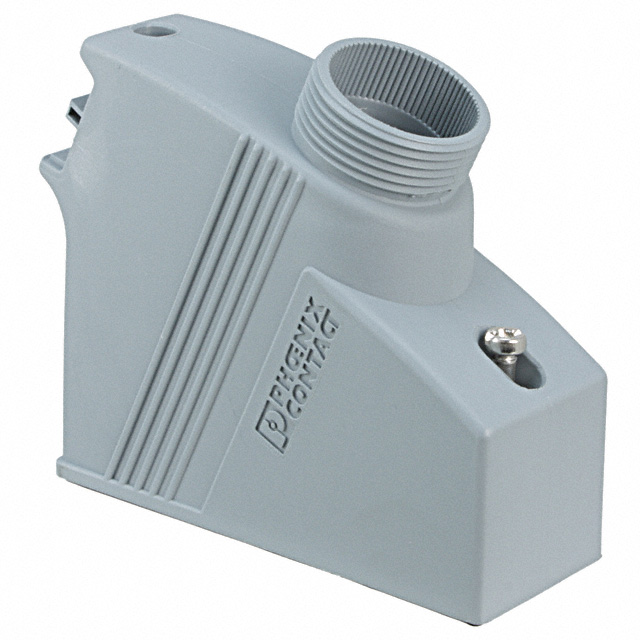

1852956
ObsoletePhoenix Contact
CONN HOOD THRU TYPE PG21
1852956
ObsoletePhoenix Contact
CONN HOOD THRU TYPE PG21
Description
General part information
1852956
Hood Connector Thru Type PG21 IP67 - Dust Tight, Waterproof
Technical Specifications
Parameters and characteristics for this part
| Specification | 1852956 |
|---|---|
| Connector Type | Hood |
| Housing Material | Nylon, Polyamide, PA |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Lock Location | Screw Locks on Hood |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Height | 3.11 in |
| Size / Dimension Length | 3.78 in |
| Size / Dimension Width | 1.299 in |
| Style | Thru Type |
| Thread Size | PG21 |
