6162.0036
ActiveSCHURTER Inc.
PWR ENT RCPT IEC320-C18 PANEL QC
6162.0036
ActiveSCHURTER Inc.
PWR ENT RCPT IEC320-C18 PANEL QC
Description
General part information
6162.0036

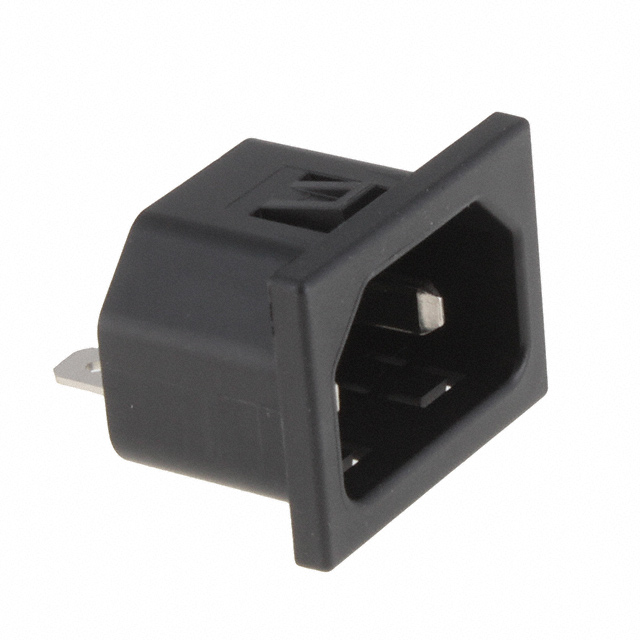

Power Entry Connector Receptacle, Male Blades IEC 320-C18 Panel Mount, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | 6162.0036 |
|---|---|
| Accomodates a Fuse | No |
| Approval Agency | cCSAus, ENEC, CCC |
| Connector Style | IEC 320-C18 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered, Commercial |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 2 |
| Panel Cutout Length | 27.5 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 20 mm |
| Panel Thickness | 0.079 in |
| Termination | Quick Connect |
| Termination Probe Tip OD | 0.189 in |
| Voltage Rating - Appliance Inlet | 250 VAC |
