SSI-LXH072YD

Active

Lumex Opto/Components Inc.

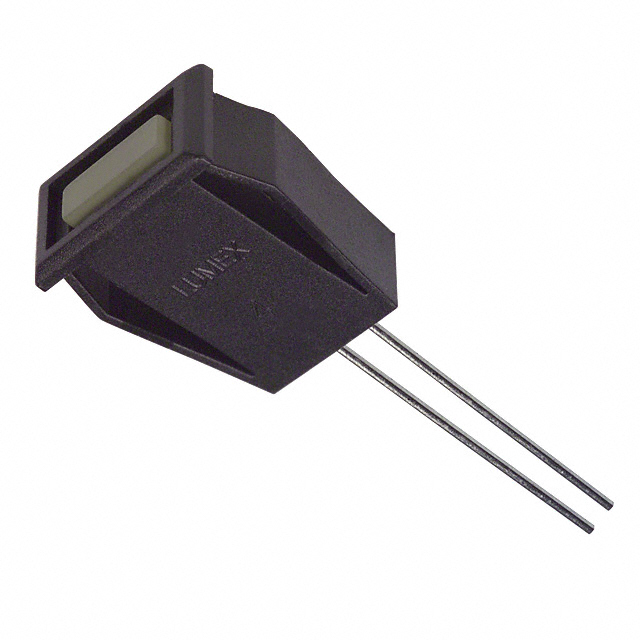

LED 2.3X7MM YEL PANEL MOUNT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 2.3X7MM YEL PANEL MOUNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.51

General part information

LED Panel Indicator Yellow Diffused 110° 2.1V 30mA

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LED 2.3X7MM GREEN PANEL MOUNT

Part	Lamp Color	Type	Wavelength - Peak	Panel Cutout Shape	Lens Color	Voltage	Lens Transparency	Millicandela Rating	Lens Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Viewing Angle	Lens Size [x]	Lens Size [y]	Current
Lumex Opto/Components Inc. SSI-LXH072GD	Green	LED	565 nm	Rectangle	Green	2.2 V	Diffused	9 mcd	Rectangle with Flat Top	5.3 mm	0.21 in	11 mm	0.43 in	110 °	7 mm	2.3 mm	25 mA
Lumex Opto/Components Inc. SSI-LXH072YD	Yellow	LED	585 nm	Rectangle	Yellow	2.1 V	Diffused	9 mcd	Rectangle with Flat Top	5.3 mm	0.21 in	11 mm	0.43 in	110 °	7 mm	2.3 mm	30 mA
Lumex Opto/Components Inc. SSI-LXH072SRD	Red	LED	660 nm	Rectangle	Red	1.7 V	Diffused	50 mcd	Rectangle with Flat Top	5.3 mm	0.21 in	11 mm	0.43 in	110 °	7 mm	2.3 mm	30 mA
Lumex Opto/Components Inc. SSI-LXH072SYD-150	Yellow	LED	585 nm	Rectangle	Yellow	2.1 V	Diffused	160 mcd	Rectangle with Flat Top					110 °	7 mm	2.3 mm
Lumex Opto/Components Inc. SSI-LXH072IGW3-150	Green, Red	LED	565 nm, 635 nm	Rectangle	White	2 V, 2.2 V	Diffused	9 mcd, 10 mcd	Rectangle with Flat Top					110 °	7 mm	2.3 mm	20 mA, 20 mA
Lumex Opto/Components Inc. SSI-LXH072SRD-150	Red	LED	660 nm	Rectangle	Red	1.8 V	Diffused	50 mcd	Rectangle with Flat Top					110 °	7 mm	2.3 mm
