Description
General part information
VS3RP5XLVQ

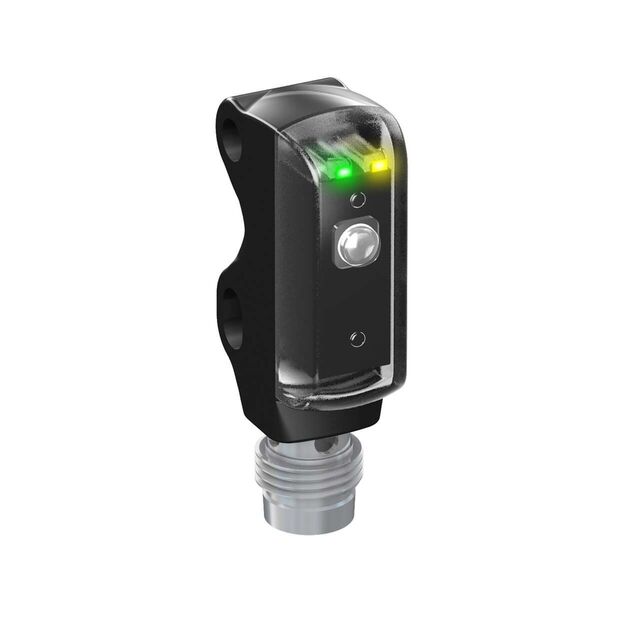

Retroreflective, NonPolarized Optical Sensor 9.843" (250mm) PNP - Dark-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | VS3RP5XLVQ |
|---|---|
| Connection Method | Connector |
| Ingress Protection | NEMA 6P, IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 680 nm |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -20 °C |
| Output Configuration | PNN - Dark-ON, PNP, Dark-ON |
| Response Time | 1 ms |
| Sensing Distance | 9.843 " |
| Sensing Method | Retroreflective, NonPolarized |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
