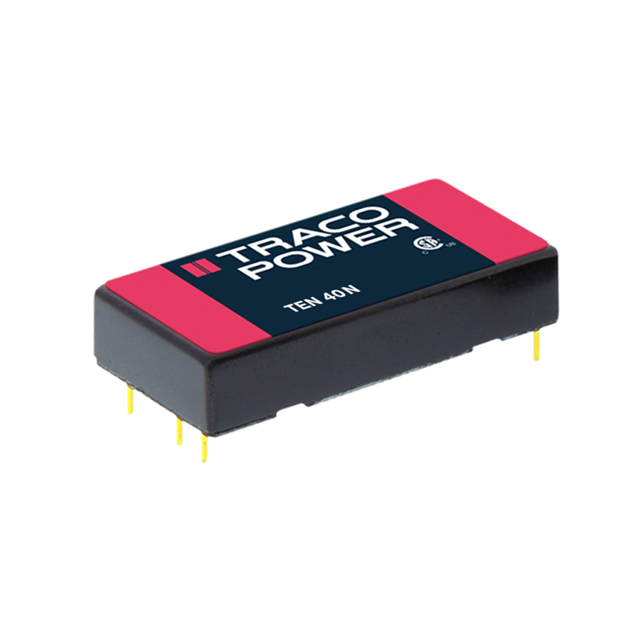

TEN 40-2413N

Active

Traco Power

DC DC CONVERTER 15V 40W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TEN 40N Certs

TEN 40-2413N

Active

Traco Power

DC DC CONVERTER 15V 40W

Deep-Dive with AI

DocumentsDatasheet TEN 40N Certs

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEN 40-2413N

Applications	ITE (Commercial)
Current - Output (Max) [Max]	2.67 A
Efficiency	91 %
Features	SCP, UVLO, Remote On/Off, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	40 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Supplier Device Package	Module
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V

TEN 40 Series

Part	Power (Watts)	Voltage - Output 1	Type	Package / Case	Voltage - Input (Min) [Min]	Features	Mounting Type	Applications	Voltage - Output 2	Approval Agency	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Voltage - Isolation	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Current - Output (Max) [Max]
Traco Power TEN 40-4823E	40 W	15 V	Isolated Module	6-DIP Module	36 V	Adjustable Output Remote On/Off	Through Hole	ITE (Commercial)	-15 V	CB cURus	91 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	75 V	1.333 A	1.333 A	1.6 kV	2	85 °C	-40 °C
Traco Power TEN 40-1222	40 W	12 V	Isolated Module	9-DIP Module 8 Leads	9 V	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	ITE (Commercial)	-12 V		85 %	2 in	0.4 "	2 in	10.2 mm	50.8 mm	50.8 mm	18 V		1.67 A	1.5 kV	2	75 ░C	-40 °C	1.67 A
Traco Power TEN 40-1213E	40 W	15 V	Isolated Module	6-DIP Module	9 V	Adjustable Output Remote On/Off	Through Hole	ITE (Commercial)		CB cURus	91 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V			1.6 kV	1	85 °C	-40 °C		2.666 A
Traco Power TEN 40-2415E	40 W	24 V	Isolated Module	6-DIP Module	18 V	Adjustable Output Remote On/Off	Through Hole	ITE (Commercial)		CB cURus	91 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	36 V			1.6 kV	1	85 °C	-40 °C		1.666 A
Traco Power TEN 40-1225E	40 W	24 V	Isolated Module	6-DIP Module	9 V	Adjustable Output Remote On/Off	Through Hole	ITE (Commercial)	-24 V	CB cURus	91 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V		833 mA	1.6 kV	2	85 °C	-40 °C	833 mA
Traco Power TEN 40-1210E	40 W	3.3 V	Isolated Module	6-DIP Module	9 V	Adjustable Output Remote On/Off	Through Hole	ITE (Commercial)		CB cURus	89 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V			1.6 kV	1	85 °C	-40 °C		12.2 A
Traco Power TEN 40-1211E	40 W	5 V	Isolated Module	6-DIP Module	9 V	Adjustable Output Remote On/Off	Through Hole	ITE (Commercial)		CB cURus	90 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V			1.6 kV	1	85 °C	-40 °C		8 A
Traco Power TEN 40-2423E	40 W	15 V	Isolated Module	6-DIP Module	18 V	Adjustable Output Remote On/Off	Through Hole	ITE (Commercial)	-15 V	CB cURus	91 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	36 V	1.333 A	1.333 A	1.6 kV	2	85 °C	-40 °C
Traco Power TEN 40-4810WIE	40 W	3.3 V	Isolated Module	6-DIP Module	18 V	Adjustable Output Remote On/Off	Through Hole	ITE (Commercial)		CB cURus	90 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	75 V			1.6 kV	1	85 °C	-40 °C		12.2 A
Traco Power TEN 40-4823WIE	40 W	15 V	Isolated Module	6-DIP Module	18 V	Adjustable Output Remote On/Off	Through Hole	ITE (Commercial)	-15 V	CB cURus	91 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	75 V	1.333 A	1.333 A	1.6 kV	2	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 77.30
		10	$ 65.60
		25	$ 63.43
		50	$ 61.84
		100	$ 60.29
		250	$ 53.24
