1123630-4

Active

TE Connectivity AMP Connectors

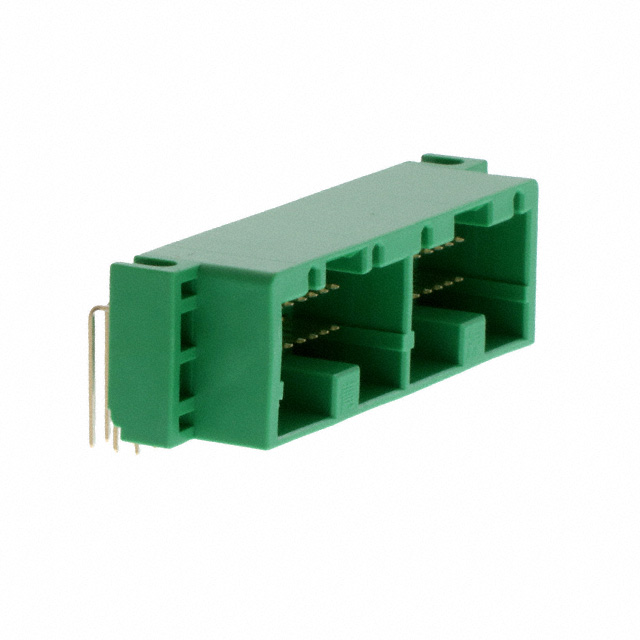

CONN HEADER R/A 48POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 48POS

Technical Specifications

Parameters and characteristics for this part

Specification	1123630-4

Applications	Automotive, General Purpose
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Tab
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Mounting Flange
Insulation Color	Green
Insulation Height [z]	19.89 mm
Insulation Height [z]	0.783 in
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole, Right Angle
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 4.41

CONN HEADER R/A 48POS

Part	Features	Applications	Shrouding	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Current Rating (Amps)	Insulation Color	Contact Material	Number of Positions	Contact Type	Termination	Number of Positions Loaded	Fastening Type	Number of Rows	Mounting Type	Style
TE Connectivity AMP Connectors 1123630-4	Mounting Flange	Automotive, General Purpose	Shrouded - 4 Wall	19.89 mm	0.783 in	Tin	Polybutylene Terephthalate (PBT)	-40 °C	120 °C	Rectangular	Varies by Wire Gauge	Green	Brass	48	Tab	Solder	All	Latch Holder	3	Through Hole, Right Angle	Board to Cable/Wire

General part information

Connector Header Through Hole, Right Angle 48 position
