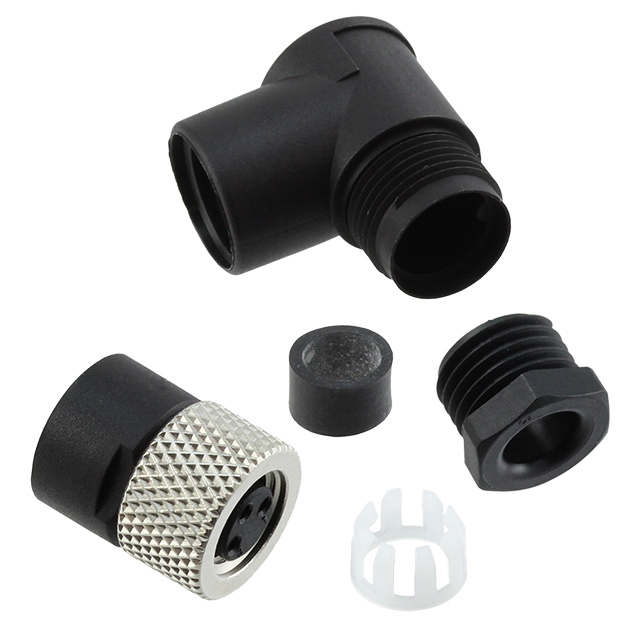

SENSOR CONNECTOR, M8, FEMALE, 3 POSITIONS, SOLDER SOCKET, RIGHT ANGLE CABLE MOUNT
1529399
ActivePhoenix Contact
SENSOR CONNECTOR, M8, FEMALE, 3 POSITIONS, SOLDER SOCKET, RIGHT ANGLE CABLE MOUNT
Description
General part information
1529399
3 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 1529399 |
|---|---|
| Backshell Material, Plating | Polybutylene Terephthalate (PBT) |
| Cable Opening (Max) | 0.197 in |
| Cable Opening (Min) | 0.138 in |
| Color | Black, Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 3 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M8-3 |
| Termination | Solder Cup |
| Voltage Rating (AC) | 48 VAC |
| Voltage Rating (DC) | 60 VDC |
