CHM-9-30-80-36-AC12-F3-3
Luminus Devices Inc.

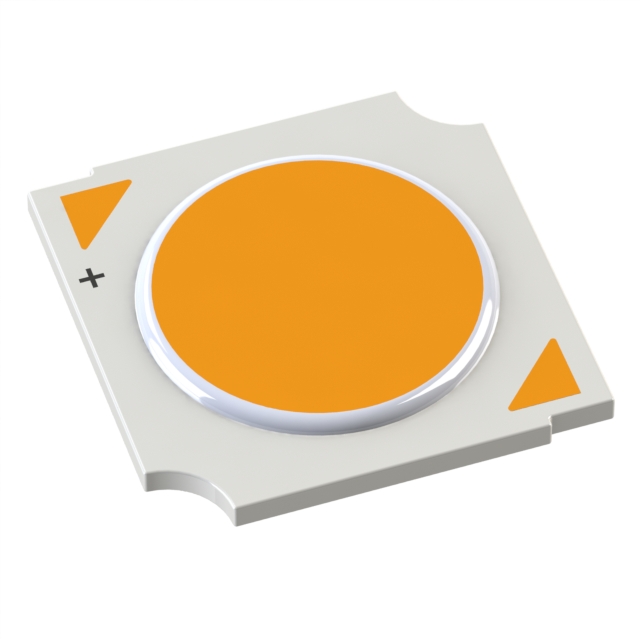

LED COB SENSUS WM WHT SQ 3000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CHM-9-30-80-36-AC12-F3-3
Luminus Devices Inc.
LED COB SENSUS WM WHT SQ 3000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CHM-9-30-80-36-AC12-F3-3 | CHM-9-30 Series |
|---|---|---|
| - | - | |
| CCT (K) | 3000 K | 3000 K |
| Color | White, Warm | White, Warm |
| Configuration | Square | Square |
| CRI (Color Rendering Index) | 80 | 80 - 95 |
| Current - Max [Max] | 720 mA | 1.05 - 995 A |
| Current - Test | 360 mA | 360 - 720 mA |
| Features | - | With Connector |
| Height [z] | 1.37 mm | 1.37 mm |
| Lens Type | Flat | Flat |
| Light Emitting Surface (LES) [diameter] | 9 mm | 8.9 - 9.6 mm |
| Lumens/Watt @ Current - Test | 123 lm/W | 70 - 139 lm/W |
| Luminous Flux @ Current/Temperature | 1530 lm | 1110 - 2205 lm |
| Size / Dimension | - | 15 - 19 mm |
| Size / Dimension | - | 15 - 19 mm |
| Temperature - Test | 85 °C | 85 °C |
| Type | Chip On Board (COB) | Chip On Board (COB) |
| Viewing Angle | 120 ° | 120 ° |
| Voltage - Forward (Vf) (Typ) | 34.5 V | 18 - 36.5 V |
CHM-9-30 Series
LED COB CHM9 WARM WHT SQU 3000K
| Part | Color | Configuration | Current - Max [Max] | CRI (Color Rendering Index) | Lumens/Watt @ Current - Test | Luminous Flux @ Current/Temperature | Voltage - Forward (Vf) (Typ) | Light Emitting Surface (LES) [diameter] | Lens Type | Type | Size / Dimension [y] | Size / Dimension [x] | Height [z] | CCT (K) | Viewing Angle | Current - Test | Temperature - Test | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Luminus Devices Inc. CHM-9-30-95-36-XH00-F2-3 | Warm, White | Square | 1.05 A | 95 | 70 lm/W | 1825 lm | 36 V | 9 mm | Flat | Chip On Board (COB) | 19 mm | 19 mm | 1.37 mm | 3000 K | 120 ° | 720 mA | 85 °C | |
Luminus Devices Inc. CHM-9-30-90-36-XD22-F4-3 | Warm, White | Square | 995 mA | 90 | 117 lm/W | 1425 lm | 34 V | 9.6 mm | Flat | Chip On Board (COB) | 15 mm | 15 mm | 1.37 mm | 3000 K | 120 ° | 360 mA | 85 °C | |
Luminus Devices Inc. CHM-9-30-80-36-XH00-F1-3 | Warm, White | Square | 1.05 A | 80 | 36 V | 9 mm | Flat | Chip On Board (COB) | 19 mm | 19 mm | 1.37 mm | 3000 K | 120 ° | 720 mA | 85 °C | |||
Luminus Devices Inc. CHM-9-30-90-36-AC00-F2-3 | Warm, White | Square | 720 mA | 90 | 93 lm/W | 1170 lm | 35 V | 9 mm | Flat | Chip On Board (COB) | 1.37 mm | 3000 K | 120 ° | 360 mA | 85 °C | |||
Luminus Devices Inc. CHM-9-30-80-36-AC02-F2-2 | Warm, White | Square | 720 mA | 80 | 110 lm/W | 1380 lm | 35 V | 9 mm | Flat | Chip On Board (COB) | 1.37 mm | 3000 K | 120 ° | 360 mA | 85 °C | |||
Luminus Devices Inc. CHM-9-30-90-36-XH24-F3-3 | Warm, White | Square | 1.08 A | 90 | 84 lm/W | 2205 lm | 36.5 V | 8.9 mm | Flat | Chip On Board (COB) | 19 mm | 19 mm | 1.37 mm | 3000 K | 120 ° | 720 mA | 85 °C | With Connector |
Luminus Devices Inc. CHM-9-30-80-36-AC12-F3-3 | Warm, White | Square | 720 mA | 80 | 123 lm/W | 1530 lm | 34.5 V | 9 mm | Flat | Chip On Board (COB) | 1.37 mm | 3000 K | 120 ° | 360 mA | 85 °C | |||
Luminus Devices Inc. CHM-9-30-90-36-AC00-F2-2 | Warm, White | Square | 720 mA | 90 | 93 lm/W | 1170 lm | 35 V | 9 mm | Flat | Chip On Board (COB) | 1.37 mm | 3000 K | 120 ° | 360 mA | 85 °C | |||
Luminus Devices Inc. CHM-9-30-80-36-AC10-F3-3 | Warm, White | Square | 720 mA | 80 | 121 lm/W | 1550 lm | 35.5 V | 9 mm | Flat | Chip On Board (COB) | 1.37 mm | 3000 K | 120 ° | 360 mA | 85 °C | |||
Luminus Devices Inc. CHM-9-30-95-18-AC10-F3-3 | Warm, White | Square | 545 mA | 95 | 18 V | 9 mm | Flat | Chip On Board (COB) | 1.37 mm | 3000 K | 120 ° | 360 mA | 85 °C |
