Description
General part information
DK-BULK-1008-SB-WH-100

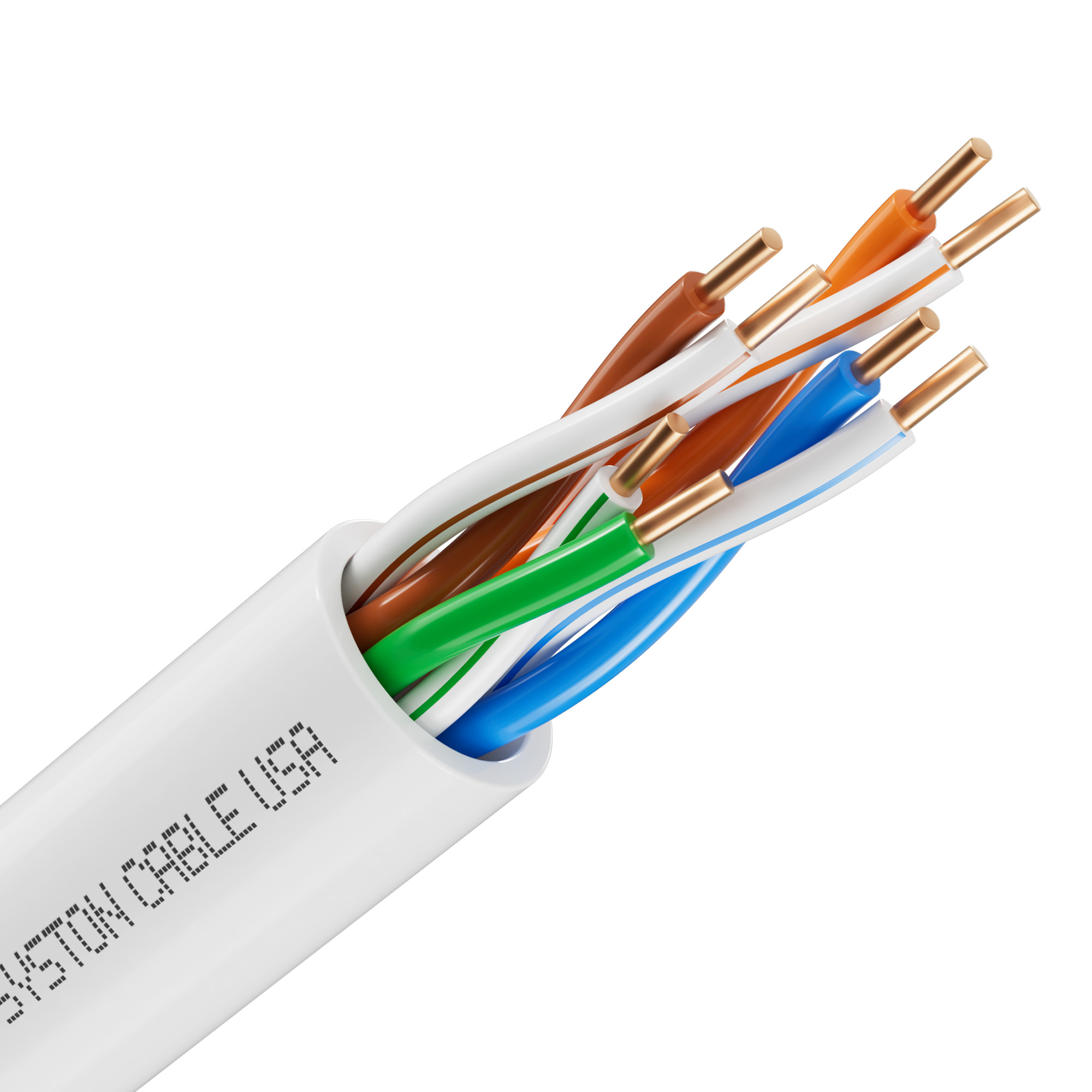

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable White 24 AWG 100.0' (30.5m)
Technical Specifications
Parameters and characteristics for this part
| Specification | DK-BULK-1008-SB-WH-100 |
|---|---|
| Cable Type | Multi-Pair, Cat5e |
| Conductor Arrangement | Twisted |
| Conductor Insulation | Fluoropolymer |
| Conductor Material | Annealed Bare, Copper |
| Features | Flame Retardant, Rip Cord, UV Resistant |
| Jacket (Insulation) Diameter | 0.2 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Plenum |
| Jacket Color | White |
| Length | 100 ft |
| Number of Conductors | 8 |
| Number of Conductors - Pair | 4 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -35 °C |
| Ratings | Style, UL, CMP |
| Usage | Video, LAN, Ethernet |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
