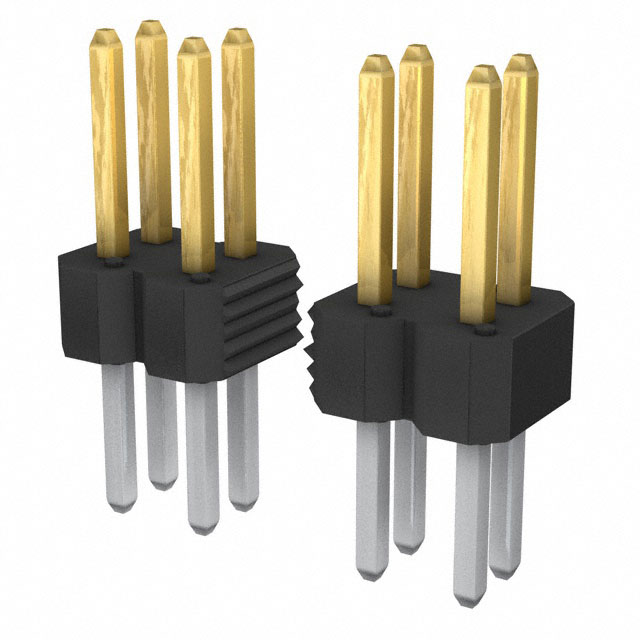

Specification	77313-893-72LF

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold, GXT™
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Post	78.7 µin
Contact Length - Mating	0.236 in
Contact Length - Post	0.189 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	72
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-65 °C
Overall Contact Length	0.525 in
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Solder

77313 Series

...

Part	Number of Positions	Contact Type	Contact Finish - Mating	Row Spacing - Mating	Termination	Pitch - Mating	Contact Length - Post	Insulation Material	Overall Contact Length	Shrouding	Contact Material	Number of Positions Loaded	Mounting Type	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Insulation Color	Style	Number of Rows	Material Flammability Rating	Contact Shape	Fastening Type	Contact Finish - Post	Connector Type	Contact Length - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Current Rating (Per Contact)	Number of Positions
Amphenol ICC (FCI) 77313-102-16	16	Male Pin	Gold GXT™	0.1 in	Solder	0.1 in	0.135 in	Thermoplastic	0.465 in	Unshrouded	Phosphor Bronze	All	Through Hole	0.1 in	78.7 µin	30 µin	Black	Board Board or Cable	2	UL94 V-0	Square	Push-Pull	Tin	Header	0.23 in
Amphenol ICC (FCI) 77313-118-24LF	24 pos	Male Pin	Gold GXT™	0.1 in	Solder	0.1 in	0.12 in	Thermoplastic	0.45 in	Unshrouded	Phosphor Bronze	All	Through Hole	0.1 in	78.7 µin	30 µin	Black	Board Board or Cable	2	UL94 V-0	Square	Push-Pull	Tin	Breakaway Header	0.23 in	-65 °C	130 °C	3 A
Amphenol ICC (FCI) 77313-802-58LF	58	Male Pin	Gold GXT™	0.1 in	Solder	0.1 in	0.135 in	Thermoplastic	0.465 in	Unshrouded	Phosphor Bronze	All	Through Hole	0.1 in	78.7 µin	15 µin	Black	Board Board or Cable	2	UL94 V-0	Square	Push-Pull	Tin	Breakaway Header	0.23 in	-65 °C	130 °C	3 A
Amphenol ICC (FCI) 77313-427-00LF		Male Pin	Tin	0.1 in	Solder	0.1 in	0.105 in	Thermoplastic	0.465 in	Unshrouded	Phosphor Bronze	All	Through Hole	0.1 in	78.7 µin	78.7 Ąin	Black	Board Board or Cable	2	UL94 V-0	Square	Push-Pull	Tin	Breakaway Header	0.26 in	-65 °C	130 °C	3 A	Cuttable
Amphenol ICC (FCI) 77313-222-40LF	40	Male Pin	Gold GXT™	0.1 in	Solder	0.1 in	0.12 in	Thermoplastic	0.526 in	Unshrouded	Phosphor Bronze	All	Through Hole	0.1 in	78.7 µin	50 µin	Black	Board Board or Cable	2	UL94 V-0	Square	Push-Pull	Tin	Breakaway Header	0.305 in
Amphenol ICC (FCI) 77313-119-06	6	Male Pin	Gold GXT™	0.1 in	Solder	0.1 in	0.119 in	Thermoplastic	0.724 in	Unshrouded	Phosphor Bronze	All	Through Hole	0.1 in	78.7 µin	30 µin	Black	Board Board or Cable	2	UL94 V-0	Square	Push-Pull	Tin	Header	0.505 in
Amphenol ICC (FCI) 77313-122-40LF	40	Male Pin	Gold GXT™	0.1 in	Solder	0.1 in	0.12 in	Thermoplastic	0.526 in	Unshrouded	Phosphor Bronze	All	Through Hole	0.1 in	78.7 µin	30 µin	Black	Board Board or Cable	2	UL94 V-0	Square	Push-Pull	Tin	Breakaway Header	0.305 in	-65 °C	130 °C	3 A
Amphenol ICC (FCI) 77313-101-24	24 pos	Male Pin	Gold GXT™	0.1 in	Solder	0.1 in	0.095 in	Thermoplastic	0.425 in	Unshrouded	Phosphor Bronze	All	Through Hole	0.1 in	78.7 µin	30 µin	Black	Board Board or Cable	2	UL94 V-0	Square	Push-Pull	Tin	Header	0.23 in
Amphenol ICC (FCI) 77313-120-30LF	30	Male Pin	Gold GXT™	0.1 in	Solder	0.1 in	0.12 in	Thermoplastic	0.825 in	Unshrouded	Phosphor Bronze	All	Through Hole	0.1 in	78.7 µin	30 µin	Black	Board Board or Cable	2	UL94 V-0	Square	Push-Pull	Tin	Breakaway Header	0.605 in	-65 °C	130 °C	3 A
Amphenol ICC (FCI) 77313-152-60LF	60	Male Pin	Gold GXT™	0.1 in	Solder	0.1 in	0.12 in	Thermoplastic	0.594 in	Unshrouded	Phosphor Bronze	All	Through Hole	0.1 in	78.7 µin	30 µin	Black	Board Board or Cable	2	UL94 V-0	Square	Push-Pull	Tin	Breakaway Header	0.374 in	-65 °C	130 °C	3 A
