ASI1492J4
ActiveASI-Automation Systems Interconnect
1492-J4 EQUIVALENT TERMINAL BLOC
ASI1492J4
ActiveASI-Automation Systems Interconnect
1492-J4 EQUIVALENT TERMINAL BLOC
Description
General part information
ASI1492J4

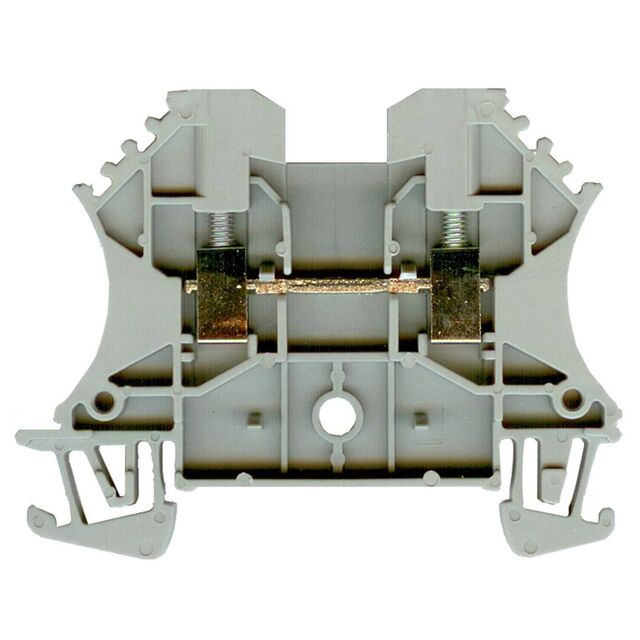

Terminal Block Connector 2 Position Feed Through Gray 10-28 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | ASI1492J4 |
|---|---|
| Color | Gray |
| Current - UL | 35 A |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Terminal Width | 6 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 10 AWG |
