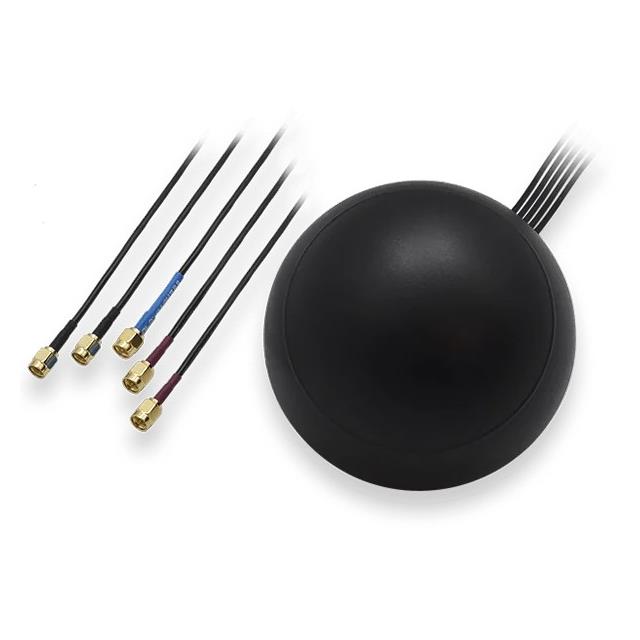

PR1KCO28

Active

Teltonika

COMBO MIMO MOBILE/GNSS/WIFI ROOF

Search across all available documentation for this part.

Active

Teltonika

COMBO MIMO MOBILE/GNSS/WIFI ROOF

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PR1KCO28	PR1K Series

Antenna Type	Dome	Dome, Whip, Straight
Applications	LTE, Wi-Fi, GNSS	LTE, Wi-Fi, GNSS, General Purpose
Features	Cable - 3m, LNA	Cable - 3m, LNA, Cable
Features	-	1.5 - 3 m
Frequency (Center/Band)	1.592 GHz, 829 MHz, 5.362 GHz, 2.44 GHz, 2.2 GHz	1.592 - 900 GHz
Frequency Group	Wide Band	Wide Band
Frequency Range [Max]	2.48 GHz, 2.69 GHz, 5.825 GHz, 960 MHz, 1.61 GHz	1.61 - 960 GHz
Frequency Range [Min]	1.575 GHz, 4.9 GHz, 2.4 GHz, 698 MHz, 1.71 GHz	1.575 - 698 GHz
Gain	2 dBic, 3 dBi	2 - 3.5 dBic
Height (Max)	-	0.575 - 3.484 in
Height (Max) [Max]	2.087 in	2.087 in
Height (Max) [Max]	53 mm	14.6 - 88.5 mm
Ingress Protection	IP65	IP65, IP50
Mounting Type	Screw	Screw, Magnetic
Number of Bands	-	2 - 8
Number of Bands [custom]	5	5
RF Family/Standard	Navigation, WiFi	Navigation, WiFi, General ISM
Termination	SMA Male (3), RP-SMA Male (2)	SMA Male (3), RP-SMA Male (2), RP-SMA Male, RP-SMA Male (1), SMA Male (2)
VSWR	3, 2.5	1.5 - 3

COMBO MIMO MOBILE/GNSS/WIFI ROOF

Part	Antenna Type	Height (Max) [Max]	Height (Max) [Max]	RF Family/Standard	Number of Bands [custom]	Frequency Group	Frequency (Center/Band)	Gain	Frequency Range [Min]	Frequency Range [Max]	Ingress Protection	Mounting Type	Termination	Features	VSWR	Applications	Features	Number of Bands	Height (Max) [Max] [z]
Teltonika PR1KCO28	Dome	2.087 in	53 mm	Navigation, WiFi	5	Wide Band	1.592 GHz, 2.2 GHz, 2.44 GHz, 5.362 GHz, 829 MHz	2 dBic, 3 dBi	1.575 GHz, 1.71 GHz, 2.4 GHz, 4.9 GHz, 698 MHz	1.61 GHz, 2.48 GHz, 2.69 GHz, 5.825 GHz, 960 MHz	IP65	Screw	RP-SMA Male (2), SMA Male (3)	Cable - 3m, LNA	2.5, 3	GNSS, LTE, Wi-Fi
Teltonika PR1KRD30	Whip, Straight		88.5 mm	General ISM		Wide Band	2.45 GHz, 5.4 GHz	3 dBi	2.4 GHz, 4.95 GHz	2.5 GHz, 5.85 GHz	IP50	Magnetic	RP-SMA Male	Cable	2	General Purpose	1.5 m	2	3.484 in
Teltonika PR1KCL25	Dome		14.6 mm	General ISM		Wide Band	2.2 GHz, 829 MHz	2.5 dBi	1.71 GHz, 698 MHz	2.69 GHz, 960 MHz	IP65	Screw		Cable	3	General Purpose	3 m	2	0.575 in
Teltonika PR1KCS28	Dome		14.6 mm	Navigation, WiFi		Wide Band	1.8 GHz, 1.9 GHz, 2.17 GHz, 2.2 GHz, 2.425 GHz, 829 MHz, 850 MHz, 900 MHz	2.5 dBi, 3.5 dBi	1.71 GHz, 2.35 GHz, 698 MHz	2.5 GHz, 2.69 GHz, 960 MHz	IP65	Screw	RP-SMA Male (1), SMA Male (2)	Cable - 3m, LNA	1.5	GNSS, LTE, Wi-Fi		8	0.575 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA GNSS, LTE, Wi-Fi Dome RP-SMA Male (2), SMA Male (3) Screw
