Description
General part information

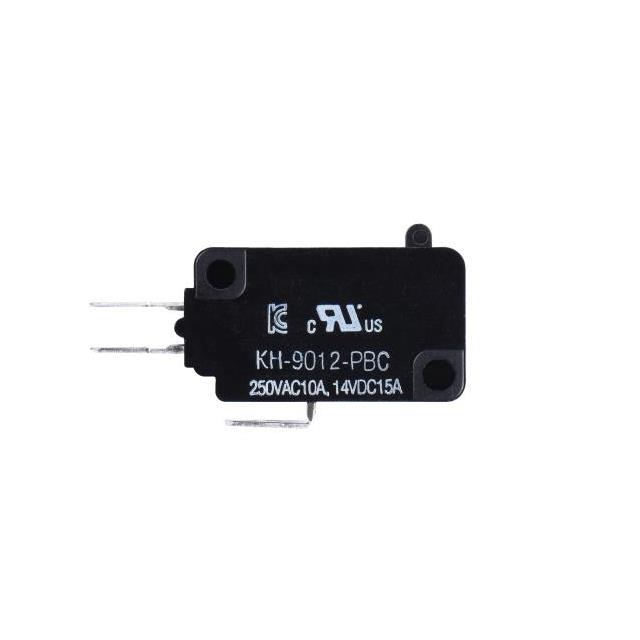

KH-9012-PBC
Switch SPDT Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | KH-9012-PBC |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating | 15 A, 6 A, 15 A |
| Electrical Life (Cycles) | 100000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 0.5 kgf |
| Operating Position (Length) | 0.579 in |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Overtravel (Linear) | 0.012 in |
| Pretravel (Length) | 0.063 in |
| Switch Function | On-Mom |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 14 V, 30 V |
