N0436N-ZK-E1-AY
ActiveRenesas Electronics Corporation
MOSFETS MOSFET
N0436N-ZK-E1-AY
ActiveRenesas Electronics Corporation
MOSFETS MOSFET
Description
General part information
N0436N-ZK-E1-AY
N-Channel 40 V 56A (Ta) 1W (Ta), 87.4W (Tc) Surface Mount TO-252
Technical Specifications
Parameters and characteristics for this part
| Specification | N0436N-ZK-E1-AY |
|---|---|
| Current - Continuous Drain (Id) (Ta) | 56 A |
| Drain to Source Voltage (Vdss) | 40 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Max) | 62 nC |
| Input Capacitance (Ciss) (Max) | 3200 pF |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |

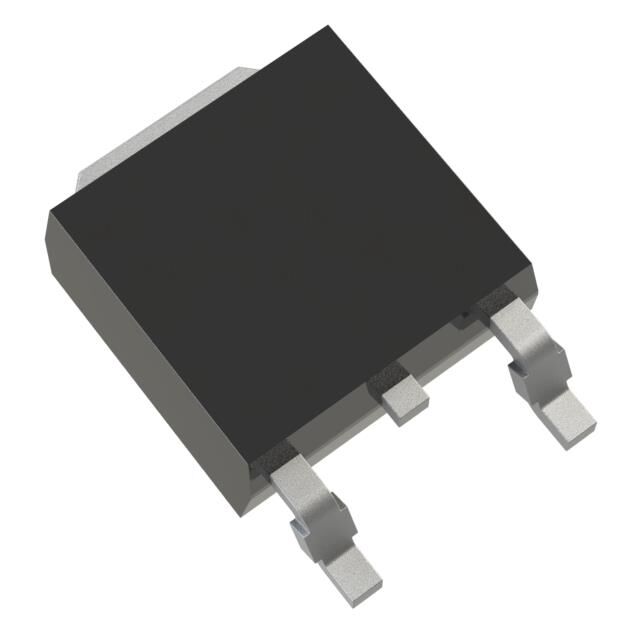

| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| Package Name | TO-252 |
| Power Dissipation (Max) | 1 W, 87.4 W |
| Rds On (Max) | 4.7 mOhm |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) | 4 V |
