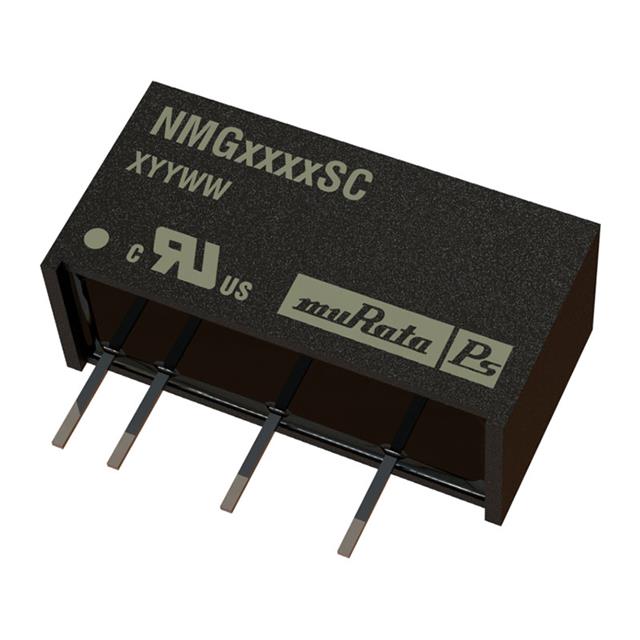

NMG1215SC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 15V 2W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 15V 2W

Technical Specifications

Parameters and characteristics commom to parts in this series

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 2 W, 1 OUTPUT, 5 V

Part	Number of Outputs	Applications	Type	Voltage - Input (Max) [Max]	Power (Watts)	Voltage - Isolation	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]	Package / Case	Efficiency
Murata Power Solutions Inc. NMG1205SC	1	ITE (Commercial)	Isolated Module	13.2 V	2 W	1000 V	5 V	85 °C	-40 °C	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	400 mA	Through Hole	10.8 V	7-SIP Module, 4 Leads	83.5 %
Murata Power Solutions Inc. NMG1209SC	1	ITE (Commercial)	Isolated Module	13.2 V	2 W	1000 V	9 V	85 °C	-40 °C	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	222 mA	Through Hole	10.8 V	7-SIP Module, 4 Leads	87 %
Murata Power Solutions Inc. NMG1215SC	1	ITE (Commercial)	Isolated Module	13.2 V	2 W	1000 V	15 V	85 °C	-40 °C	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	133 mA	Through Hole	10.8 V	7-SIP Module, 4 Leads	88 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 15V 133mA 10.8V - 13.2V Input
